Petite LED Cocktail
« on: June 01, 2013, 08:38:38 pm »
Had an itch to make a mini cocktail after going over JKDubb's UCA Winning build and saw these. Made me a bit "gitty" inside and had to attempt a working mini cocktail.



I am going for a more traditional look for the cocktail, a bit like the full size cocktail build I just finished (but itsy bitsy).

Hardware

I wanted to keep the cost down so I ordered a used "Samsung SCH-R880" instead of what I have seen most minis made out of (Dingoo, GBA, etc). They may be easier to configure but I knew I could bend android to my will  >:D . I was originally going to hack a bluetooth keyboard up to whatever cell phone I purchased but then realized that I could get a cell phone with a slide out keyboard and hack that.



Joysticks will be these (haven't came in yet). Part number GH7455-ND on digi-key.



For the buttons I went with these. They are the perfect size and there is a similar model that is lit up with LEDs that I could not find. I am going to open them and hack in an SMD LED. There is space just for them in it (perfect!).



Pac-Man (With cocktail flipping!)



Software\Apps

Firstly I rooted the device, this is useful for a ton of reasons regardless of using it for an arcade.

I was going to write a custom rom image for it (and still might) but wanted to see if I can do it with just rooting it and messing with apps as the first would be phone specific.

Here is a list of apps needed to basically shell the front end
  • No Lock - This eliminates a lock screen from start up. So no need to touch screen
  • Auto Start - This will start any app you wish on startup, will use this to start MAME4Droid
  • Holo Launcher - Use this to disable the pull down bar at the top of the phone and other settings like auto-rotate
  • Root Browser - This is needed to browse through the phones system folders and make changes that are not accessible through normal file browsers
  • MAME4Droid - The MAME+Frontend I will be using
  • Root APP Delete - Use this to uninstall applications that came with your phone that wont be needed; like navigation, camera, maps, etc. This will speed up the system.

Will post another update\more information soon after I finish some regular work.

Yvan256

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 1039
  • Last login:June 20, 2017, 08:35:41 am
    • Yvan256
Re: Petite LED Cocktail
« Reply #1 on: June 02, 2013, 12:04:44 pm »
Another micro build added to my watch list!

Somewhere at Digi-Key, somebody is asking "What's up with part number GH7455-ND? We sold more in the last few months than in the last decade!"

P.S.: for the buttons, had you seen these?
« Last Edit: June 02, 2013, 12:17:12 pm by Yvan256 »

sabreerbasAlpha

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 253
  • Last login:February 13, 2017, 07:28:29 pm
  • Remember those big 10ps?
Re: Petite LED Cocktail
« Reply #2 on: June 02, 2013, 01:32:12 pm »
OMG CoryBee do you even sleep or do you just Knock out amazing Cabs all day and night. Another Sub..He we go again.  :notworthy: :notworthy:

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: Petite LED Cocktail
« Reply #3 on: June 06, 2013, 05:41:10 pm »
Been busy with the cabaret trifecta to post an update.

One of the main reasons I wanted to get root level access was so I can save the Mame4Droid files and the roms on the phones memory so I don't waste one of my SD Cards for such little space. There will be probably 10 - 20 games on it I think.

Build pictures

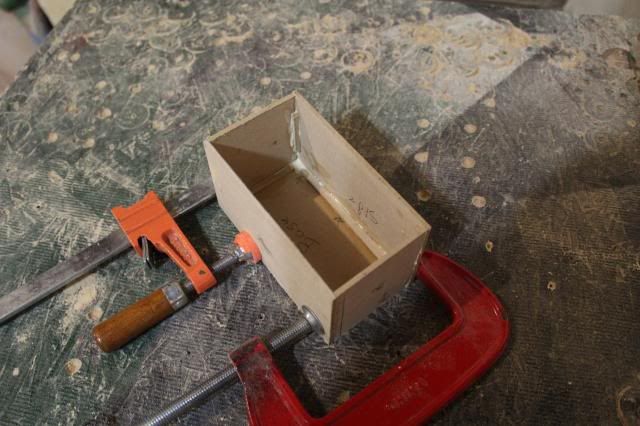

The top panel of the cabinet will be roughly 6 inches in length. And the base about 5 1\2 inches.



The top will also be two pieces of the thin MDF I got

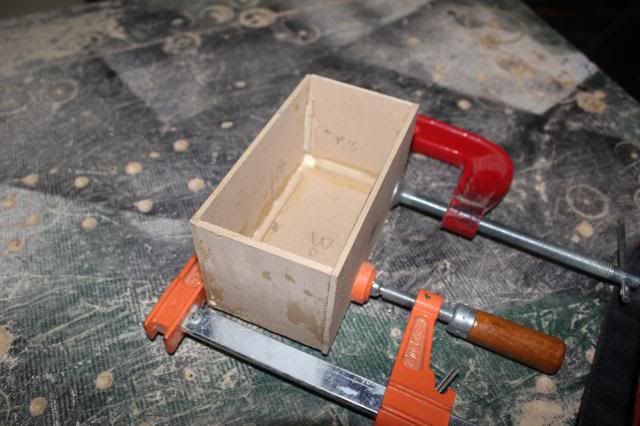

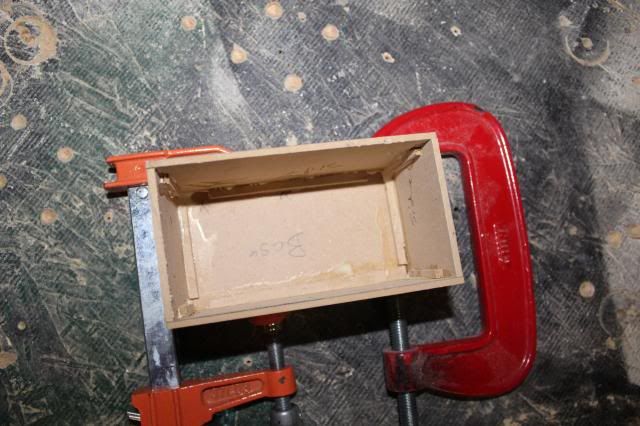

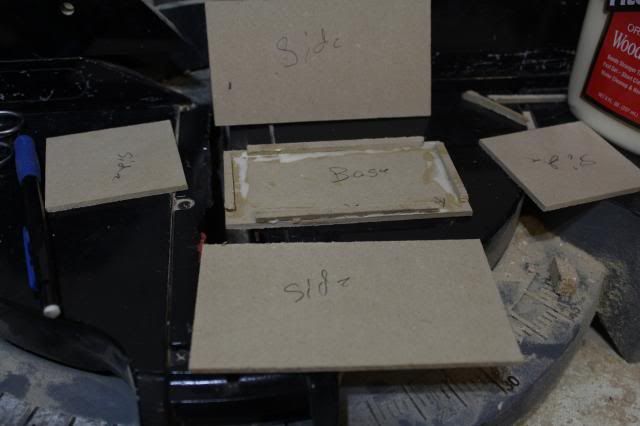

Base cabinet pictures - the little pieces to the right are the supports



Assemble

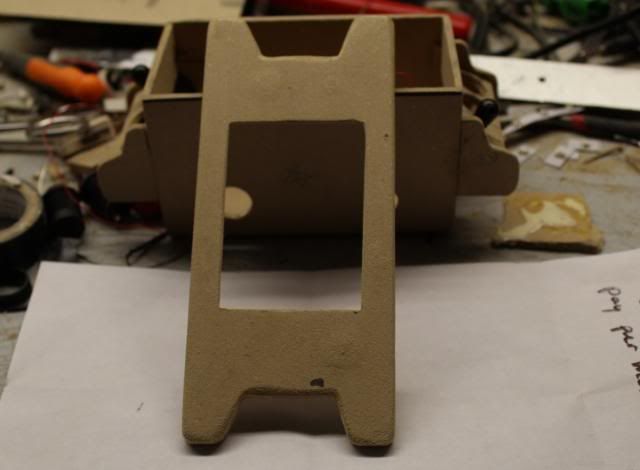

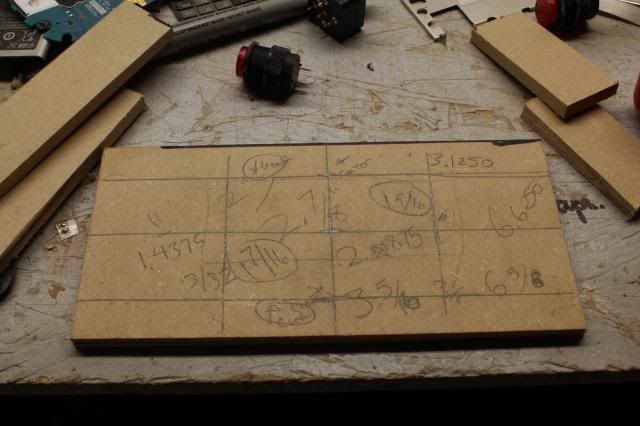

Figuring out the dimensions for the top panel - It is a pain to do the math for such small measurements



Using the same technique I used on my full size cocktail build to cut the screen section out



The flush trim bit on the router is obviously too big for the job so I improvised and used my new dremel to follow the guides. Adjusted it so it sits just on the empty part of the bit.



Voilla!



Cleaned up the edges with the jigsaw's smallest blade and did some more measurements


Louis Tully

  • Trade Count: (+5)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 1800
  • Last login:February 13, 2015, 09:41:03 pm
Re: Petite LED Cocktail
« Reply #4 on: June 06, 2013, 06:33:46 pm »
.
« Last Edit: February 12, 2015, 03:41:09 pm by Louis Tully »

Nephasth

  • Guest
  • Trade Count: (0)
Re: Petite LED Cocktail
« Reply #5 on: June 06, 2013, 06:55:14 pm »
Looking good! :cheers:

Jigenjuke

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 482
  • Last login:October 02, 2016, 12:00:50 am
Re: Petite LED Cocktail
« Reply #6 on: June 06, 2013, 07:13:17 pm »
Now you're just showing off.  ;D

Awesome stuff man. I hope to make a micro cab one of these days. Keepin' my eye out for an Advance SP of craigslist.

What he said!  Good show Cory, will be watching.

Jigenjuke

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: Petite LED Cocktail
« Reply #7 on: June 06, 2013, 07:27:14 pm »
Thanks fellas, got a little bit further and will post some more pictures. Resizing it a bit as I think the base should be a little bit shorter.

Doing the little control panels will be a blast for sure!

Jigenjuke

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 482
  • Last login:October 02, 2016, 12:00:50 am
Re: Petite LED Cocktail
« Reply #8 on: June 06, 2013, 09:32:14 pm »
Thanks fellas, got a little bit further and will post some more pictures. Resizing it a bit as I think the base should be a little bit shorter.

Doing the little control panels will be a blast for sure!

Cory, looking forward to see how this turns out.  I will be making a mirco cocktail joust sometime in the near future.  Good luck.

Jigenjuke

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: Petite LED Cocktail
« Reply #9 on: June 07, 2013, 12:02:48 am »
Stripping the phone of its pretty shell





Screen and main=board separated (but not without issue......)



I wasn't careful enough while removing this metal shield (the main slider assembly) and tore part of the ribbon cable.... My heart dropped.  :banghead:



I powered the phone on hoping to see the screen and voilla! It turned on.....Unfortunately I lost all use of the touch screen and home buttons. But the screen still worked which is enough for me as I have the keyboard which is plenty to navigate the phone and finish shelling MAME.

Ripped cable



Tape to keep it from tearing any further



Anyways, back to the fun.

LCD screen removed (very carefully) from the touch digitizer glass



Thanks for looking!

« Last Edit: June 07, 2013, 01:40:47 am by CoryBee »

jdbailey1206

  • Trade Count: (+1)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2656
  • Last login:March 11, 2023, 01:32:56 pm
  • No. It's your top score on Pole Position.
Re: Petite LED Cocktail
« Reply #10 on: June 07, 2013, 07:17:29 am »
Kudos to anyone who does a mini cab.  I get enough of a headache just dealing with a regular sized cab.

Yvan256

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 1039
  • Last login:June 20, 2017, 08:35:41 am
    • Yvan256
Re: Petite LED Cocktail
« Reply #11 on: June 07, 2013, 10:13:03 am »
I think one way of officially differentiating between a mini-cab and a micro-cab would be those GH7455-ND joysticks. If a cabinet uses them or something as small as those, it's a micro.  ;)

jdbailey1206

  • Trade Count: (+1)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2656
  • Last login:March 11, 2023, 01:32:56 pm
  • No. It's your top score on Pole Position.
Re: Petite LED Cocktail
« Reply #12 on: June 07, 2013, 10:21:14 am »



 ;D

sabreerbasAlpha

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 253
  • Last login:February 13, 2017, 07:28:29 pm
  • Remember those big 10ps?
Re: Petite LED Cocktail
« Reply #13 on: June 07, 2013, 01:13:46 pm »
looking Good Cory looking good my friend. I like the work with dremel my friend. Cant wait to see this finished it looks super cool.

mcseforsale

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 1471
  • Last login:April 09, 2024, 03:07:41 pm
  • Creepy Mario Dude
Re: Petite LED Cocktail
« Reply #14 on: June 07, 2013, 01:48:10 pm »
subscribed...

AJ

yotsuya

  • Trade Count: (+21)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 19960
  • Last login:July 17, 2025, 10:00:30 pm
  • 2014 UCA Winner, 2014, 2015, 2016 ZapCon Winner
    • forum.arcadecontrols.com/index.php/topic,137636.msg1420628.html
Re: Petite LED Cocktail
« Reply #15 on: June 07, 2013, 01:56:58 pm »
subscribed...

AJ

I'd love to see your subscription list one day...  >:D
***Build what you dig, bro. Build what you dig.***

mcseforsale

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 1471
  • Last login:April 09, 2024, 03:07:41 pm
  • Creepy Mario Dude
Re: Petite LED Cocktail
« Reply #16 on: June 07, 2013, 02:00:02 pm »
Just further proof that AJ is always watching.

Once the basement is in a better state, I'll be starting a lot of new projects.

AJ

subscribed...

AJ

I'd love to see your subscription list one day...  >:D

PL1

  • Global Moderator
  • Trade Count: (+1)
  • Full Member
  • *****
  • Offline Offline
  • Posts: 9672
  • Last login:Yesterday at 03:51:00 pm
  • Designated spam hunter
Re: Petite LED Cocktail
« Reply #17 on: June 07, 2013, 02:42:10 pm »
subscribed...

AJ

I'd love to see your subscription list one day...  >:D

Why wait -- you get 32 hits searching for "subscribed" by author "mcseforsale".   ;D


Scott

mcseforsale

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 1471
  • Last login:April 09, 2024, 03:07:41 pm
  • Creepy Mario Dude
Re: Petite LED Cocktail
« Reply #18 on: June 07, 2013, 02:43:54 pm »
Wow.  that's less than I thought.  I try to subscribe early and often.

AJ


subscribed...

AJ

I'd love to see your subscription list one day...  >:D

Why wait -- you get 32 hits searching for "subscribed" by author "mcseforsale".   ;D


Scott

PL1

  • Global Moderator
  • Trade Count: (+1)
  • Full Member
  • *****
  • Offline Offline
  • Posts: 9672
  • Last login:Yesterday at 03:51:00 pm
  • Designated spam hunter
Re: Petite LED Cocktail
« Reply #19 on: June 07, 2013, 02:54:53 pm »
Wow.  that's less than I thought.  I try to subscribe early and often.

Those are the ones where you posted the word "subscribed" in the thread.

Not sure how else to determine what threads someone has subscribed.  :dunno


Scott

Nephasth

  • Guest
  • Trade Count: (0)
Re: Petite LED Cocktail
« Reply #20 on: June 07, 2013, 03:34:53 pm »
Wow.  that's less than I thought.  I try to subscribe early and often.

Those are the ones where you posted the word "subscribed" in the thread.

Not sure how else to determine what threads someone has subscribed.  :dunno


Scott

If you don't want to be instantly notified by email of new posts, click Add Bookmark at the top of the thread (Notify if you want email alerts). Then at the top of the forum there is a My Bookmarks button, click that and it will show which threads you have bookmarked.

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: Petite LED Cocktail
« Reply #21 on: June 07, 2013, 05:25:29 pm »


Kudos to anyone who does a mini cab.  I get enough of a headache just dealing with a regular sized cab.

This thing is definitely a headache but every time I finish a part so tiny it makes it all worth it.

Cant wait to see this finished it looks super cool.


Me too good sir, me too.

Nephasth

  • Guest
  • Trade Count: (0)
Re: Petite LED Cocktail
« Reply #22 on: June 07, 2013, 05:37:16 pm »


Get her back on course! Post more :pics

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: Petite LED Cocktail
« Reply #23 on: June 07, 2013, 05:41:33 pm »

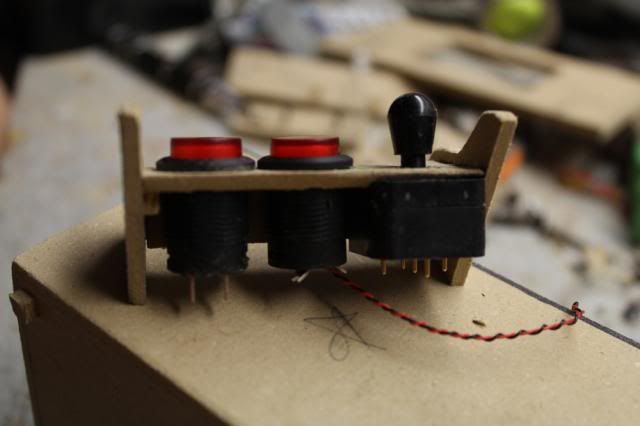

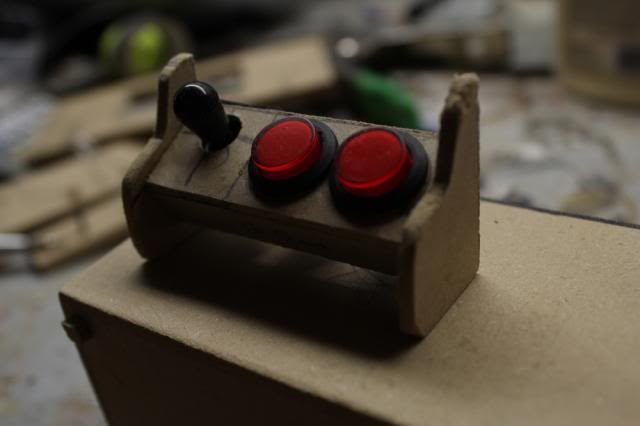

I have more to post, the control panel for player one is complete. But lady friend is hungry so we are off to Pancake Palace.

Her just now, "are you on your arcades again...."

Le Chuck

  • Saint, make a poll!
  • Wiki Contributor
  • Trade Count: (+6)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 5509
  • Last login:June 14, 2025, 06:26:06 pm
  • <insert personal text here>
Re: Petite LED Cocktail
« Reply #24 on: June 07, 2013, 06:06:03 pm »
Micro the shizzle outta that build patron!

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: Petite LED Cocktail
« Reply #25 on: June 08, 2013, 12:22:11 am »
Itsy bitsy teeny weenie control panel thingy



Everything will get a good sanding with a high grit before paint is applied

Holes drilled



Fits snuggly



Since I am under-mounting the joysticks I need to "route" out some space so it is more flush - This was accomplished with an exacto-knife



After tracing all CP parts for player two it is time for assembly



Voilla!







Here you an see where one of the buttons had been converted to LED via SMD parts (more on this, and pictures,  later)


PL1

  • Global Moderator
  • Trade Count: (+1)
  • Full Member
  • *****
  • Offline Offline
  • Posts: 9672
  • Last login:Yesterday at 03:51:00 pm
  • Designated spam hunter
Re: Petite LED Cocktail
« Reply #26 on: June 08, 2013, 11:35:24 am »
Not sure why you aligned the joystick with the top of the buttons instead of the bottom.   :dunno

Won't the vertical side block a 2-finger-grip on the stick?


Scott

Nephasth

  • Guest
  • Trade Count: (0)
Re: Petite LED Cocktail
« Reply #27 on: June 08, 2013, 11:37:47 am »
Won't the vertical side block a 2-finger-grip on the stick?

I'm betting it's going to be a thumb on top of the stick "grip".

Le Chuck

  • Saint, make a poll!
  • Wiki Contributor
  • Trade Count: (+6)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 5509
  • Last login:June 14, 2025, 06:26:06 pm
  • <insert personal text here>
Re: Petite LED Cocktail
« Reply #28 on: June 08, 2013, 12:28:29 pm »
Not sure why you aligned the joystick with the top of the buttons instead of the bottom.   :dunno

Scott

I'm guessing that bottom alignment would put the body of the base of the stick pocking out a mm or more past the face of the CP and raising the buttons would not be a good solution either.  Increasing the size of the whole attachment would solve the problem but create others in terms of scale.

PL1

  • Global Moderator
  • Trade Count: (+1)
  • Full Member
  • *****
  • Offline Offline
  • Posts: 9672
  • Last login:Yesterday at 03:51:00 pm
  • Designated spam hunter
Re: Petite LED Cocktail
« Reply #29 on: June 08, 2013, 01:21:29 pm »
Not sure why you aligned the joystick with the top of the buttons instead of the bottom.   :dunno

Scott

I'm guessing that bottom alignment would put the body of the base of the stick pocking out a mm or more past the face of the CP and raising the buttons would not be a good solution either.  Increasing the size of the whole attachment would solve the problem but create others in terms of scale.

You nailed it -- checked one with the micrometer and it's closer to the front edge than I originally thought.


Scott

Nephasth

  • Guest
  • Trade Count: (0)
Re: Petite LED Cocktail
« Reply #30 on: June 08, 2013, 01:23:01 pm »

You nailed it -- checked one with the micrometer and it's closer to the front edge than I originally thought.


Scott

Micrometer? :dizzy: Or did you mean calipers?

PL1

  • Global Moderator
  • Trade Count: (+1)
  • Full Member
  • *****
  • Offline Offline
  • Posts: 9672
  • Last login:Yesterday at 03:51:00 pm
  • Designated spam hunter
Re: Petite LED Cocktail
« Reply #31 on: June 08, 2013, 01:57:32 pm »
Micrometer? :dizzy: Or did you mean calipers?

6 of one, 1/2 dozen of the other.  Mine look like this.

Use whichever term you prefer.

When I read "calipers", I think of these.



They're good for some measurements, but not for .001" accuracy.


Scott
« Last Edit: June 08, 2013, 02:05:51 pm by PL1 »

Nephasth

  • Guest
  • Trade Count: (0)
Re: Petite LED Cocktail
« Reply #32 on: June 08, 2013, 02:05:35 pm »
Micrometer? :dizzy: Or did you mean calipers?

6 of one, 1/2 dozen of the other.

It comes from my mechanic side. ;)

Le Chuck

  • Saint, make a poll!
  • Wiki Contributor
  • Trade Count: (+6)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 5509
  • Last login:June 14, 2025, 06:26:06 pm
  • <insert personal text here>
Petite LED Cocktail
« Reply #33 on: June 08, 2013, 04:02:05 pm »
Wait, so you held a ruler up to the screen? :lol

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: Petite LED Cocktail
« Reply #34 on: June 08, 2013, 04:20:27 pm »
---gosh-darn--- it guys?! Calipers!!!! Micromachines!!!!! GET IN LINE!!!!  :angry:

Won't the vertical side block a 2-finger-grip on the stick?
I'm betting it's going to be a thumb on top of the stick "grip".

Perfect ^^

You will hold it with one hand on each side played by your thumbs mostly.

Just like my full size cocktail the controls are a bit inside the machine and tilted at an angle. This one will almost look exactly the same, just tiny.


PL1

  • Global Moderator
  • Trade Count: (+1)
  • Full Member
  • *****
  • Offline Offline
  • Posts: 9672
  • Last login:Yesterday at 03:51:00 pm
  • Designated spam hunter
Re: Petite LED Cocktail
« Reply #35 on: June 08, 2013, 06:36:44 pm »
Wait, so you held a ruler up to the screen? :lol

Pretty much.  I used ratio comparison (handle diameter:shaft to edge distance) and also a foreground-miniature technique (photo on screen, hold the joystick up so it appears to be the same size/orientation) -- the usual photo-interpreter-type tricks to double-check.

Both methods work great on a 46" TV.
[/derail]

GET IN LINE!!!!  :angry:

Sir, yes Sir.  Falling in, Sir.




Scott

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: Petite LED Cocktail
« Reply #36 on: June 08, 2013, 11:05:58 pm »
Player two's CP assembled





Top piece cut in a similar fashion as the full size





Routed out space for the screen to sit flush (used the full sized router for this, very....very carefully)






Mungo9000

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 82
  • Last login:August 25, 2016, 09:18:21 am
Re: Petite LED Cocktail
« Reply #37 on: June 09, 2013, 05:24:15 am »
 :cheers: I'm loving this build!

Sjaak

  • Trade Count: (+1)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 706
  • Last login:March 19, 2025, 02:54:38 am
Re: Petite LED Cocktail
« Reply #38 on: June 09, 2013, 05:40:51 am »
Great work  :applaud:

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: Petite LED Cocktail
« Reply #39 on: June 10, 2013, 05:27:21 pm »
:cheers: I'm loving this build!

 :cheers:

Great work  :applaud:

Thanks for stopping by Sjaak, hope all is going well on the Felix front.

Quick picture of things put together, paint is drying now. Soon will mount the screen and electronics will be soldered up.

Anyone got any good ideas on how I should secure the acrylic to the top??


Jigenjuke

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 482
  • Last login:October 02, 2016, 12:00:50 am
Re: Petite LED Cocktail
« Reply #40 on: June 10, 2013, 07:25:23 pm »
:cheers: I'm loving this build!

 :cheers:

Great work  :applaud:

Thanks for stopping by Sjaak, hope all is going well on the Felix front.

Quick picture of things put together, paint is drying now. Soon will mount the screen and electronics will be soldered up.

Anyone got any good ideas on how I should secure the acrylic to the top??



Mini cocktail glass clips made of aluminium pop tops??

Just a thought

Jigenjuke

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: Petite LED Cocktail
« Reply #41 on: June 10, 2013, 08:03:37 pm »
I have no idea what you are talking about.

Wish I had access to a 3d printer still :(

PL1

  • Global Moderator
  • Trade Count: (+1)
  • Full Member
  • *****
  • Offline Offline
  • Posts: 9672
  • Last login:Yesterday at 03:51:00 pm
  • Designated spam hunter
Re: Petite LED Cocktail
« Reply #42 on: June 10, 2013, 09:11:28 pm »
I have no idea what you are talking about.
You're a bit young to remember when cans came with this style pull-tab.  :oldman



Pretty sure he's talking about fabricating something like this from the "tongue".



You might be able to use some metal mirror clips like these or these that precisely fit your acrylic.


Scott

jdbailey1206

  • Trade Count: (+1)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2656
  • Last login:March 11, 2023, 01:32:56 pm
  • No. It's your top score on Pole Position.
Re: Petite LED Cocktail
« Reply #43 on: June 11, 2013, 03:15:03 pm »
Everytime I read this thread all I can think of is my fingers would be too big for the buttons.  And this pops in my head.  Maybe I would just need a playing wand.    :laugh2:


Le Chuck

  • Saint, make a poll!
  • Wiki Contributor
  • Trade Count: (+6)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 5509
  • Last login:June 14, 2025, 06:26:06 pm
  • <insert personal text here>
Re: Petite LED Cocktail
« Reply #44 on: June 13, 2013, 08:03:17 pm »
get a cheapo jeweler's saw and you can cut them out yourself in no time.  It's super easy and the blades come in packs of a gross so you can break tons while you figure out the smooth motion required to glide through the metal.



What I used to make the SW micro yoke.  15 minutes to crank out those tabs max.  Give it a shot.

http://www.amazon.com/Professional-Quality-Jewelers-Frame-Blades/dp/B00313Q46M/ref=sr_1_1?ie=UTF8&qid=1371168130&sr=8-1&keywords=jeweler%27s+saw

http://www.amazon.com/SE-815JSB-144pc-Jewelers-Blades/dp/B002Q8886C/ref=sr_1_2?ie=UTF8&qid=1371168130&sr=8-2&keywords=jeweler%27s+saw

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: Petite LED Cocktail
« Reply #45 on: June 17, 2013, 04:39:07 pm »
The project is on hold until my replacement phone comes in. Unfortunately I teared the ribbon cable more. Not sure how it happened as I tested it before I put it in the parts drawer and hadn't touched it until I hooked it up recently. Anywho, should be here tomorrow or so.

Thanks for the suggestions on securing the acrylic. Still not sure what I should do yet....

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: Petite LED Cocktail
« Reply #46 on: June 23, 2013, 09:58:20 pm »
Figured I would throw an update out there, Louis Tully and I started our micro builds at the same time and he is currently blowing me out of the water.

 :laugh:

I got another cell phone, exact same model so I can just use the already modified mainboard with the new assembly and screen. I went the smart way this time though and found one with a broken digitizer (touch screen glass) as the actual screen is in perfect condition when removed. $8 shipped :cheers:

Here is the LED modification I did to the buttons.

Using SMD LEDs from a piece of 5m light strip acquired from ebay.



Cap of the push-button is easily removed and the strip trimmed down



I keep the strip in tact as it is easy to overhead the SMDs with the soldering iron. The pads act as a heat sink, and it also makes it easier on me because SMDs are a pain as you all may know.



Rest of the pad trimmed and the resistor flipped to the other side



I drill a small hole for the wires to exit the button, insert the LED with a small bit of hot glue to keep it in place.



Test of the LED, perfect!  ;D



All four are wired to a custom little pad that is turned on an off by a switch on the back of the cocktail. I got a bunch of the control wiring done as well, running out of space though. These little things are something else, takes a ton of patience to get stuff right.

Thanks for watching.

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: Petite LED Cocktail
« Reply #47 on: August 10, 2013, 11:53:10 am »
Saw luis tullys update on how he messed up....figured I would tell of mine (not as bad or pricey though)

Ruined one ribbon cable at the onset, got a new phone had everything working and was getting ready to wrap things up. Told of this.

Then.....

It happened again, which means I had to get a new phone. I got up and something tugged on the power cord I made and the thing fell to the ground.....no worried I caught it before it hit.....but I caught it by the top half and ripped the ribbon cable in half....again.

Have been frustrated with it so I just said F$@$@# it for a little while. Thinking about buying a new screen now though, the thing already had everything wired up, LEDs and painted. I rolled out 5 big arcades and 2 small ones in the time I have been messing with this Petite one.

You are not alone Tully.

 :banghead:

Louis Tully

  • Trade Count: (+5)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 1800
  • Last login:February 13, 2015, 09:41:03 pm
Re: Petite LED Cocktail
« Reply #48 on: August 10, 2013, 12:05:18 pm »
.
« Last Edit: February 12, 2015, 03:52:27 pm by Louis Tully »

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: Petite LED Cocktail
« Reply #49 on: August 10, 2013, 12:17:38 pm »
Saw luis tullys update on how he messed up....figured I would tell of mine (not as bad or pricey though)

Ruined one ribbon cable at the onset, got a new phone had everything working and was getting ready to wrap things up. Told of this.

Then.....

It happened again, which means I had to get a new phone. I got up and something tugged on the power cord I made and the thing fell to the ground.....no worried I caught it before it hit.....but I caught it by the top half and ripped the ribbon cable in half....again.

Have been frustrated with it so I just said F$@$@# it for a little while. Thinking about buying a new screen now though, the thing already had everything wired up, LEDs and painted. I rolled out 5 big arcades and 2 small ones in the time I have been messing with this Petite one.

You are not alone Tully.

 :banghead:

Oh no! Not you too?!?  I was wondering about this project.

I got great deals on those DS's. One for $40 and the other for $30. So, it's not as bad as it could have been. But I was right there with you on the "F$@$@# it for a little while" mindset. But, like you, having done so much with the cabinet, it's hard to throw in the towel now. We'll get there.
 :cheers:

Eventually.....yes.....

Contemplating getting another phone, I might go with a different model this time though. Too cute of a machine to not finish it.

matt4949

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 431
  • Last login:November 07, 2021, 09:24:54 pm
  • Poor Kids Only Got To Watch Video Games
Re: Petite LED Cocktail
« Reply #50 on: August 10, 2013, 12:18:38 pm »

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: Petite LED Cocktail
« Reply #51 on: August 10, 2013, 12:49:03 pm »
Thanks matt. It has been stressful, but all this work has to amount to something so I am going to get another phone for it.

DaOld Man

  • Trade Count: (+4)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 5158
  • Last login:May 24, 2025, 09:57:44 pm
  • Wheres my coffee?
    • Skenny's Outpost
Re: Petite LED Cocktail
« Reply #52 on: August 10, 2013, 06:22:06 pm »
Good work Cory.
I dont see how you and Tulley do these micro projects. My eyeballs would be falling out after a while, not to mention my fingers getting all tangled up.

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: Petite LED Cocktail
« Reply #53 on: August 10, 2013, 07:07:30 pm »
Good work Cory.
I dont see how you and Tulley do these micro projects. My eyeballs would be falling out after a while, not to mention my fingers getting all tangled up.

It definitely takes patients and a steady hand.

Even though it will cost me some more and it is frustrating, I still have to finish it. At least for the fact that it will be the first Micro Cocktail (unless someone made one before....)

ark_ader

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 5645
  • Last login:March 02, 2019, 07:35:34 pm
  • I glow in the dark.
Re: Petite LED Cocktail
« Reply #54 on: August 10, 2013, 07:17:45 pm »
Why didn't you just use one of those cheap 4.3" android tablets and wire it up to a KADE?

Seems like a lot of trouble in the wiring department.

You might want to reinforce that 4mm MDF CP with some plexi.  ;D
If I had only one wish, it would be for three more wishes.

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: Petite LED Cocktail
« Reply #55 on: August 10, 2013, 07:33:40 pm »
4.3" is too big for this cocktail

Also, this guy is perdy sturdy already no need for reinforcing

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: Petite LED Cocktail
« Reply #56 on: August 24, 2013, 08:27:07 pm »
Just bought this guy to replace the other phone, so I am at number three now.....a charm right?

http://www.ebay.com/itm/261261729708?ssPageName=STRK:MEWNX:IT&_trksid=p3984.m1497.l2649



I aim to finish this build, hopefully without having to buy another phone.

sabreerbasAlpha

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 253
  • Last login:February 13, 2017, 07:28:29 pm
  • Remember those big 10ps?
Re: Petite LED Cocktail
« Reply #57 on: August 25, 2013, 03:57:04 pm »
Just bought this guy to replace the other phone, so I am at number three now.....a charm right?

http://www.ebay.com/itm/261261729708?ssPageName=STRK:MEWNX:IT&_trksid=p3984.m1497.l2649



I aim to finish this build, hopefully without having to buy another phone.

Seriously love these builds Cory. Honestly how much does one cost from the ground up. Id love to have one.

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: Petite LED Cocktail
« Reply #58 on: August 25, 2013, 06:00:59 pm »
Nice size sheet of really thin MDF - $4

2 Digikey Micro Joysticks - $30

Cell phone with pull out qwerty keyboard and cracked digitizer - $10 (assuming you don't have to buy three)

These buttons about 6 of them in the order - $6

Random bits of wire, dc jack, usb cord - like $5 at the most

And last but not least, having patience (lots of it) and not having sausage fingers - Priceless

Total = Roughly $50 - $60

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: Petite LED Cocktail
« Reply #59 on: September 01, 2013, 11:18:12 pm »
The phone I bought did not have a pull out keyboard (even though it mentioned that it did in the ad)

So I order another, going to try and get it finished before I go on vacation so I have something to play.

Slippyblade

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 3167
  • Last login:June 05, 2024, 10:30:57 am
  • And to the death god we say, "Not today!"
Re: Petite LED Cocktail
« Reply #60 on: May 05, 2014, 10:24:53 am »
Curiosity bump.  Did this ever get worked on again?

mcseforsale

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 1471
  • Last login:April 09, 2024, 03:07:41 pm
  • Creepy Mario Dude
Re: Petite LED Cocktail
« Reply #61 on: May 05, 2014, 03:16:35 pm »
Yeah, what gives Cory?  Get on it.

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: Petite LED Cocktail
« Reply #62 on: October 09, 2014, 07:18:51 am »
It's in California...and I am not...

 :dunno

Rick

  • Trade Count: (+1)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2787
  • Last login:May 19, 2025, 11:21:11 am
  • Bartop, Cocktail and Pinball Arcade Cabinets
    • Gameroom Designs Canada
Re: Petite LED Cocktail
« Reply #63 on: October 09, 2014, 10:25:37 am »
It's in California...and I am not...

Why not, man? What's shakin', bacon?

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: Petite LED Cocktail
« Reply #64 on: October 13, 2014, 12:56:42 pm »
I'm in Ireland Ricky.

I was thinking about building an arcade while here but not sure how much extra work it will be having to go to a "Men's Shed" or Hackerspace to get the job done as i'm in a flat here in Dublin.

Rick

  • Trade Count: (+1)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2787
  • Last login:May 19, 2025, 11:21:11 am
  • Bartop, Cocktail and Pinball Arcade Cabinets
    • Gameroom Designs Canada
Re: Petite LED Cocktail
« Reply #65 on: October 14, 2014, 10:29:53 am »
I'm in Ireland Ricky.

Hey, do you know Shawn? He lives in Ireland! Goes by the YouTube name "JackSepticEye".

(Sorry - had to do it. I'm still surprised at the number of times I've talked with people who don't live in Canada, and they ask me questions like that. Like a year or so ago, talked with someone who asked me if I knew their friend Bill, from Vancouver. Dude. I'm in Ontario, that's more than a stone's throw, ya know?)

I was thinking about building an arcade while here but not sure how much extra work it will be having to go to a "Men's Shed" or Hackerspace to get the job done as i'm in a flat here in Dublin.

Hackerspace sounds cool. "Men's Shed" sounds like a bath house. (Not that there's anything wrong with that, if that's what you're in to.)

;)

Le Chuck

  • Saint, make a poll!
  • Wiki Contributor
  • Trade Count: (+6)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 5509
  • Last login:June 14, 2025, 06:26:06 pm
  • <insert personal text here>
Re: Petite LED Cocktail
« Reply #66 on: October 14, 2014, 04:00:59 pm »
Dude. I'm in Ontario.

Have you met the kids in the hall?!?!!!

Rick

  • Trade Count: (+1)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2787
  • Last login:May 19, 2025, 11:21:11 am
  • Bartop, Cocktail and Pinball Arcade Cabinets
    • Gameroom Designs Canada
Re: Petite LED Cocktail
« Reply #67 on: October 14, 2014, 04:06:38 pm »
Have you met the kids in the hall?!?!!!

No, but I have chatted with Paul Chato from The Frantics on a couple of occasions. I also met Billy Van from 'The Hilarious House of Frightenstein' (and Bits & Bytes) once. Oh, and my Wife's best friend's brother is in Sum 41.

That count?

:D

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: Petite LED Cocktail
« Reply #68 on: September 25, 2019, 12:02:40 pm »
Had some free time lately for some projects. Thought I would use my newly acquired 3D skills and 3D printer to get to it.

The old one was in pretty bad shape, following me along so many moves (several different countries), always telling myself I would get to it one day. I used that as the base for my measurements for the design.

I used a raspi this time around with retropie. I also used an Xin-Mo Controller interface. Audio I used a cheap $3 thing from ebay that is one of those portable ones. For power I put one of those cheap power banks inside and ported the charge port to the side of the cocktail.

All in all very glad it is done!

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: Petite LED Cocktail
« Reply #69 on: September 25, 2019, 12:23:31 pm »
Sitting on top of the Bartop arcade I built years ago.


jdbailey1206

  • Trade Count: (+1)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2656
  • Last login:March 11, 2023, 01:32:56 pm
  • No. It's your top score on Pole Position.
Re: Petite LED Cocktail
« Reply #70 on: September 25, 2019, 03:47:47 pm »


When I first saw this I was like 'WHAT THE HELL!'  Then I realized it was CoryBee!  Then I was like 'WHAT THE HELL?!?!'

Drnick

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 1642
  • Last login:June 21, 2024, 03:32:31 pm
  • Plodding Through Life
Re: Petite LED Cocktail
« Reply #71 on: September 26, 2019, 02:12:26 am »
Hey look its CoryBee,  Goes missing for 2 years and then just strolls in like he's never been gone.  Just like my cat  :laugh2: :laugh2: :laugh2: I think that wins the smallest cocktail prize :)

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: Petite LED Cocktail
« Reply #72 on: September 26, 2019, 12:18:37 pm »
haha, I've been busy. Still faster build than OND.

Hope everyone has been well.

Anyone interested in the files let me know.

leapinlew

  • Some questionable things going on in this room with cheetos
  • Trade Count: (+4)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 7919
  • Last login:July 12, 2025, 10:33:20 pm
Re: Petite LED Cocktail
« Reply #73 on: October 05, 2019, 01:19:36 am »
Classic Corey! Good to see you.

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: Petite LED Cocktail
« Reply #74 on: October 17, 2019, 08:34:53 pm »
Classic Corey! Good to see you.

Yo leap, what do you think?

You been working on anything interesting lately?

leapinlew

  • Some questionable things going on in this room with cheetos
  • Trade Count: (+4)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 7919
  • Last login:July 12, 2025, 10:33:20 pm
Re: Petite LED Cocktail
« Reply #75 on: October 17, 2019, 10:16:16 pm »
Classic Corey! Good to see you.

Yo leap, what do you think?

You been working on anything interesting lately?

Kids count? No. Than nothing to see here. :)

Maybe this will count as interesting - I ordered a pallet of Arcade1ups and had to resell them
http://forum.arcadecontrols.com/index.php/topic,159663.msg1679262.html
