An (almost) Finished Project
« on: November 14, 2013, 08:34:36 am »
This summer i start to build my own cabinet. The intension was to keep it simple. I didn't make much photo's and only with my iPhone. But like to share them with you folks, though.
Now, the project is almost finished, just a few t-moldings here and there. Also i have to order a new sticker for on the glass above the monitor. I ruined it  :banghead: so it has to be done again.
« Last Edit: November 14, 2013, 09:57:46 am by Eminent »

Eminent

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 19
  • Last login:November 20, 2013, 05:16:39 am
  • I want to build my own arcade controls!
Re: A Finished Project
« Reply #1 on: November 14, 2013, 08:37:54 am »
The second picture show's the difference in neck size. At the background the B&O, becuase i didn't wanna build a huge cabinet i choose that one.

Eminent

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 19
  • Last login:November 20, 2013, 05:16:39 am
  • I want to build my own arcade controls!
Re: A Finished Project
« Reply #2 on: November 14, 2013, 08:39:18 am »
On goes the show

Eminent

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 19
  • Last login:November 20, 2013, 05:16:39 am
  • I want to build my own arcade controls!
Re: A Finished Project
« Reply #3 on: November 14, 2013, 08:42:39 am »

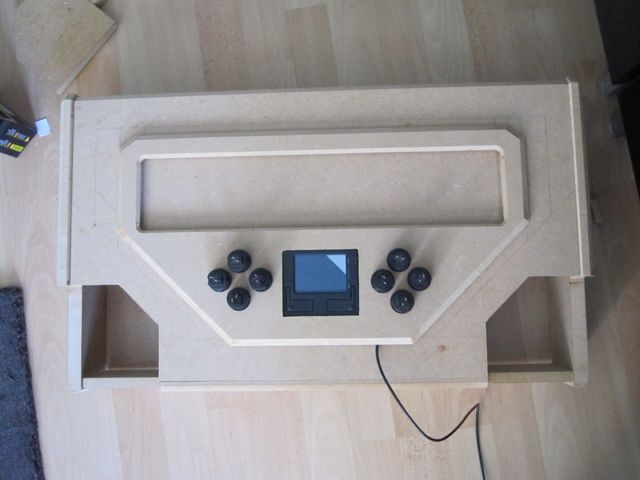

The second photo shows the drawing for the CPO i made. The third...bah, way to bling bling. The fifth photo are the LED strips. For a few dollars buyed on Ebay.
The sixth photo, much better when the black isn't that shiny.

Eminent

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 19
  • Last login:November 20, 2013, 05:16:39 am
  • I want to build my own arcade controls!
Re: A Finished Project
« Reply #4 on: November 14, 2013, 08:48:43 am »
The first photo. An "old" torch fits exactly under in case of the trackball. The second shows a nice and bright trackball.
Because the telly won't go a when powering the jamma board and the TV at the same time i use a moeller time relay. After 10 seconds the jamma board powers up and the problem is solved,
« Last Edit: November 14, 2013, 08:54:43 am by Eminent »

Eminent

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 19
  • Last login:November 20, 2013, 05:16:39 am
  • I want to build my own arcade controls!
Re: A Finished Project
« Reply #5 on: November 14, 2013, 08:51:16 am »
The first photo. Lot's of light from only one LED strip. The last two photo's shows how far i am for this moment. Just a few things and i'm done. Well, this is my project in a nutshell.

CoryBee

  • Trade Count: (+2)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2093
  • Last login:May 18, 2024, 07:28:48 am
  • Bopity Boopy
Re: A Finished Project
« Reply #6 on: November 14, 2013, 09:39:10 am »
 :applaud:

yotsuya

  • Trade Count: (+21)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 19959
  • Last login:June 29, 2025, 08:24:07 pm
  • 2014 UCA Winner, 2014, 2015, 2016 ZapCon Winner
    • forum.arcadecontrols.com/index.php/topic,137636.msg1420628.html
Re: A Finished Project
« Reply #7 on: November 14, 2013, 09:44:25 am »
How's the trackball on that working for you?
***Build what you dig, bro. Build what you dig.***

Eminent

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 19
  • Last login:November 20, 2013, 05:16:39 am
  • I want to build my own arcade controls!
Re: A Finished Project
« Reply #8 on: November 14, 2013, 09:50:48 am »
Well, it works. But i don't like playing with it. I thought Millipede and Centipede are games that only can be played with a trackball. This seems not to be true.
As said, i prefer a joystick.
« Last Edit: November 14, 2013, 09:58:30 am by Eminent »

Louis Tully

  • Trade Count: (+5)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 1800
  • Last login:February 13, 2015, 09:41:03 pm
Re: An (almost) Finished Project
« Reply #9 on: November 19, 2013, 08:58:37 am »
.
« Last Edit: February 12, 2015, 04:05:05 pm by Louis Tully »

DaOld Man

  • Trade Count: (+4)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 5158
  • Last login:May 24, 2025, 09:57:44 pm
  • Wheres my coffee?
    • Skenny's Outpost
Re: An (almost) Finished Project
« Reply #10 on: November 19, 2013, 12:47:05 pm »
Nice job.
Whats the circuit on the perf board in the 8th pic for?

Eminent

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 19
  • Last login:November 20, 2013, 05:16:39 am
  • I want to build my own arcade controls!
Re: An (almost) Finished Project
« Reply #11 on: November 20, 2013, 05:12:21 am »
Thanks for the comments. Designing the CPO was fun also. The circuitboard is the same as the pic i attached here. The RGB pot's are for the colour-intensity. The other pot is to reduce the sync signal. There is an pic with a blurry Donkey Kong. Reducing the voltage from the sync input avoids that.
