Author Topic: WIP Street fighter cab started :D (Read 46624 times)

jahilton2002 · « **on:** January 10, 2011, 08:14:04 am »

some of you might of seen my art thread:

http://forum.arcadecontrols.com/index.php?topic=108054.0

so the next step is the cab

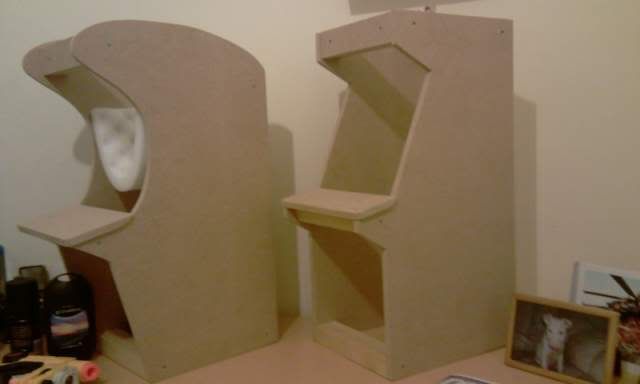

just playin' with ideas at the mo.

tell me what you think guys.

HaRuMaN · « **Reply #1 on:** January 10, 2011, 08:26:47 am »

For a street fighter cab, I like the one on the right.

Bender · « **Reply #2 on:** January 10, 2011, 09:50:45 am »

1/8th or 1/4 MDF?

jipp · « **Reply #3 on:** January 10, 2011, 11:17:35 am »

i like the one on the right

chris.

jahilton2002 · « **Reply #4 on:** January 10, 2011, 12:07:26 pm »

Quote from: Bender on January 10, 2011, 09:50:45 am

1/8th or 1/4 MDF?

not sure just yet..... these were just made from scrap i have in the workshop

Donkbaca · « **Reply #5 on:** January 10, 2011, 12:45:15 pm »

I like the one on the right better, but I am more a angle guy than a curve guy when it comes to design

opt2not · « **Reply #6 on:** January 10, 2011, 12:48:35 pm »

Looks good. I like the right one better than the Left .

Though I would have gone with replicating a Dynamo cabinet, either Z-back or straight:

Back then, most Street Fighter kits were installed in dynamo cabinets.
At 1/8th the size, a dynamo cab would look pretty cool!

Termin8tor · « **Reply #7 on:** January 10, 2011, 01:18:45 pm »

Its the one on the right for me

nintendoid · « **Reply #8 on:** January 11, 2011, 04:03:05 pm »

Quote from: opt2not on January 10, 2011, 12:48:35 pm

Looks good. I like the right one better than the Left .

Though I would have gone with replicating a Dynamo cabinet, either Z-back or straight:

Back then, most Street Fighter kits were installed in dynamo cabinets.
At 1/8th the size, a dynamo cab would look pretty cool!

Yeah I think a dynamo would look great.. I tried to find some plans once but to no joy :'(

jahilton2002 · « **Reply #9 on:** January 12, 2011, 03:08:11 am »

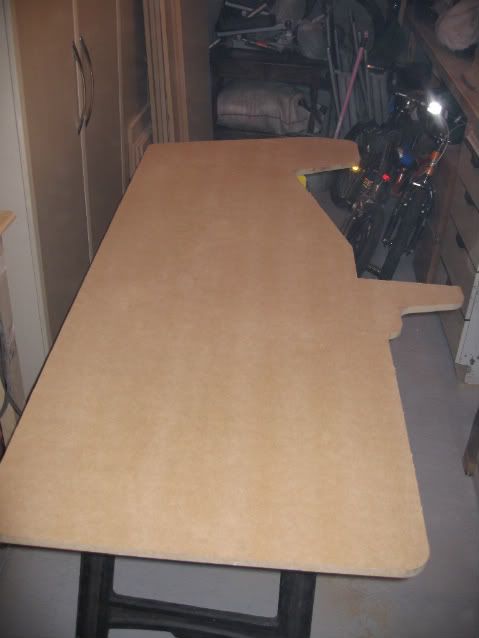

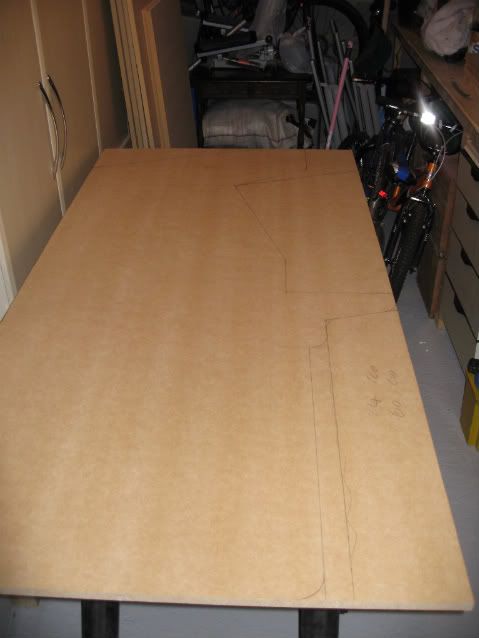

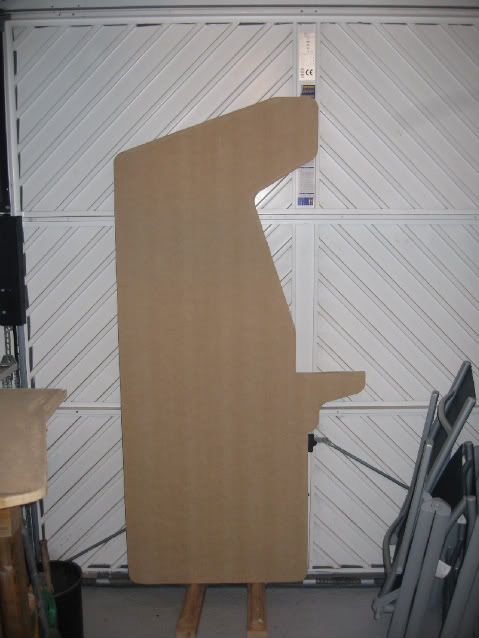

well the woodwork technician marked out one of the side panels today..... looks sweet..... looks like the top right one....... but it doesn't have a flat top.....and that one is dynamo based

Vulgar Soul · « **Reply #10 on:** January 12, 2011, 08:58:27 pm »

Quote from: nintendoid on January 11, 2011, 04:03:05 pm

Quote from: opt2not on January 10, 2011, 12:48:35 pm
Looks good. I like the right one better than the Left .

Though I would have gone with replicating a Dynamo cabinet, either Z-back or straight:

Back then, most Street Fighter kits were installed in dynamo cabinets.
At 1/8th the size, a dynamo cab would look pretty cool!

Yeah I think a dynamo would look great.. I tried to find some plans once but to no joy :'(

Gozer from the Google Sketchup 3D Warehouse has a full size model of the Dynamo cabs.

Martijn · « **Reply #11 on:** January 13, 2011, 03:47:58 am »

good luck , i like left but less dept

nintendoid · « **Reply #12 on:** January 13, 2011, 07:45:29 am »

Quote from: Mozii on January 12, 2011, 08:58:27 pm

Quote from: nintendoid on January 11, 2011, 04:03:05 pm
Quote from: opt2not on January 10, 2011, 12:48:35 pm
Looks good. I like the right one better than the Left .

Though I would have gone with replicating a Dynamo cabinet, either Z-back or straight:

Back then, most Street Fighter kits were installed in dynamo cabinets.
At 1/8th the size, a dynamo cab would look pretty cool!

Yeah I think a dynamo would look great.. I tried to find some plans once but to no joy

Gozer from the Google Sketchup 3D Warehouse has a full size model of the Dynamo cabs.

Do you have a link or anything?

jahilton2002 · « **Reply #13 on:** January 13, 2011, 02:57:39 pm »

Quote from: Martijn on January 13, 2011, 03:47:58 am

good luck , i like left but less dept

oh what an honour!!!.... it was your cab that inspired me to make this one.....

jahilton2002 · « **Reply #14 on:** January 13, 2011, 02:58:39 pm »

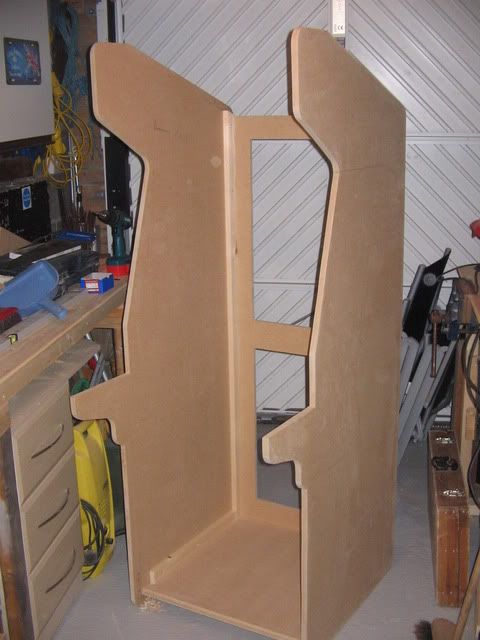

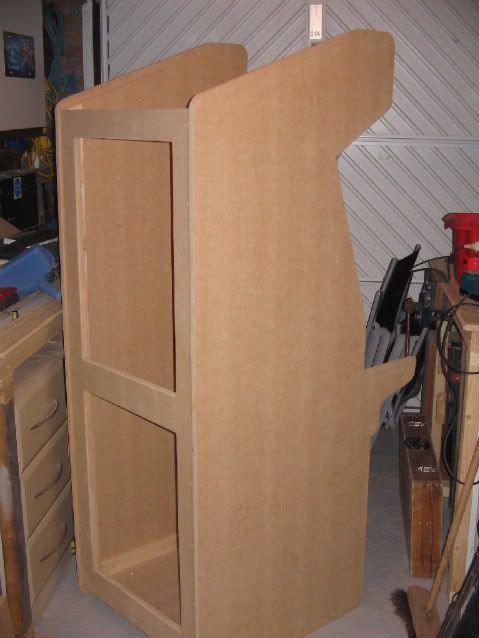

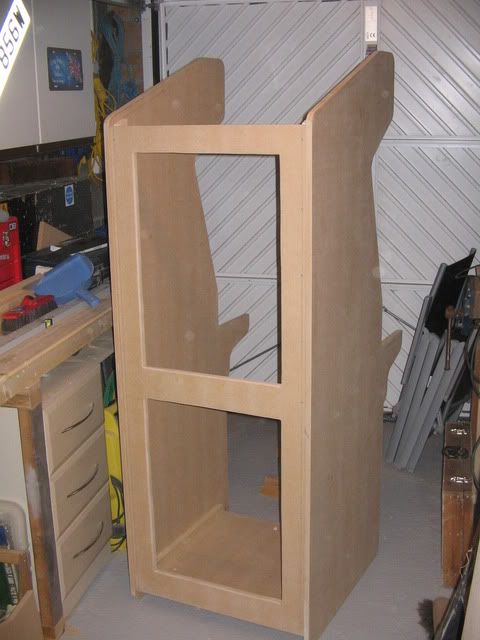

Well me and my uncle started to cut tonight....... well i say "we" but tbh i'd kill myself with any power tool!! to watch him work amazes me!...... he's a cabinet maker by trade!

based on a dynamo design with some "extra" touches. its our first build together, and its a no expense spared job

more to come soon.......

jahilton2002 · « **Reply #15 on:** January 13, 2011, 03:03:41 pm »

Quote from: nintendoid on January 13, 2011, 07:45:29 am

Quote from: Mozii on January 12, 2011, 08:58:27 pm
Quote from: nintendoid on January 11, 2011, 04:03:05 pm
Quote from: opt2not on January 10, 2011, 12:48:35 pm
Looks good. I like the right one better than the Left .

Though I would have gone with replicating a Dynamo cabinet, either Z-back or straight:

Back then, most Street Fighter kits were installed in dynamo cabinets.
At 1/8th the size, a dynamo cab would look pretty cool!

Yeah I think a dynamo would look great.. I tried to find some plans once but to no joy

Gozer from the Google Sketchup 3D Warehouse has a full size model of the Dynamo cabs.

Do you have a link or anything?

sorry custon plans.... once its finished i'll release them

jipp · « **Reply #16 on:** January 13, 2011, 07:38:39 pm »

I like the shape. look forward to future updates.

chris.

nintendoid · « **Reply #17 on:** January 14, 2011, 07:44:20 am »

Quote from: jahilton2002 on January 13, 2011, 03:03:41 pm

Quote from: nintendoid on January 13, 2011, 07:45:29 am
Quote from: Mozii on January 12, 2011, 08:58:27 pm
Quote from: nintendoid on January 11, 2011, 04:03:05 pm
Quote from: opt2not on January 10, 2011, 12:48:35 pm
Looks good. I like the right one better than the Left .

Though I would have gone with replicating a Dynamo cabinet, either Z-back or straight:

Back then, most Street Fighter kits were installed in dynamo cabinets.
At 1/8th the size, a dynamo cab would look pretty cool!
Yeah I think a dynamo would look great.. I tried to find some plans once but to no joy

Gozer from the Google Sketchup 3D Warehouse has a full size model of the Dynamo cabs.

Do you have a link or anything?

sorry custon plans.... once its finished i'll release them

no I meant plans for the dynamo cabinet origianl....

but you cabinet seems to be looking just as good.. haha

kingchimp · « **Reply #18 on:** January 14, 2011, 06:56:55 pm »

This is the full collection: http://sketchup.google.com/3dwarehouse/cldetails?mid=4ac3dc12784cb20bd06e6be4f8954ac&prevstart=0

SFII in a dynamo is here: http://sketchup.google.com/3dwarehouse/details?mid=88a2ad4d8c34db73e66202687a227eab&prevstart=0

jahilton2002 · « **Reply #19 on:** January 14, 2011, 07:04:54 pm »

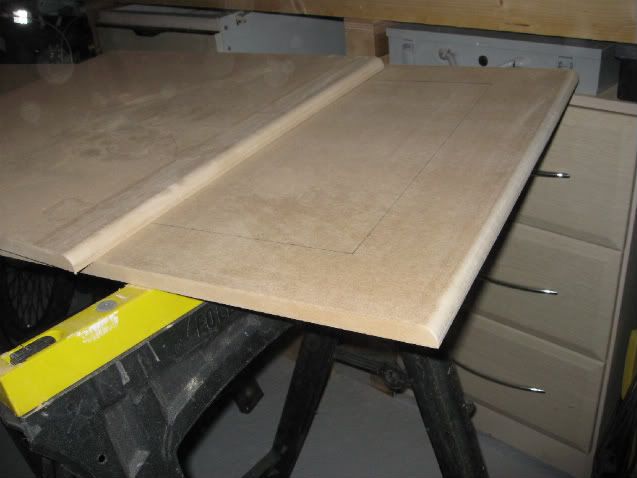

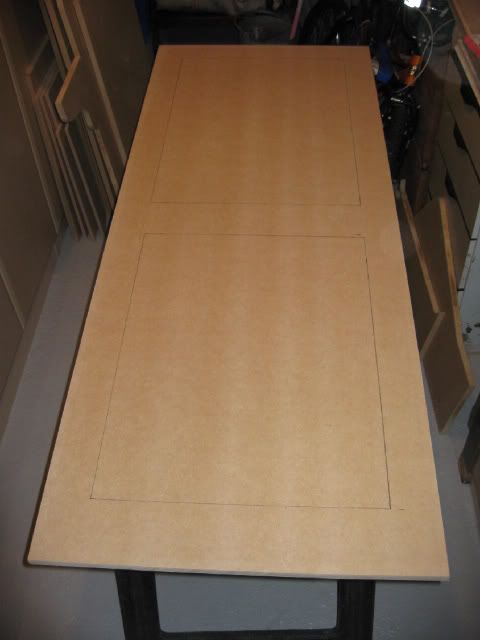

back cut to size and bottom edge routered and marked up for two doors, and base cut to size with top front edge routered.

more soon

jahilton2002 · « **Reply #20 on:** January 15, 2011, 12:43:44 pm »

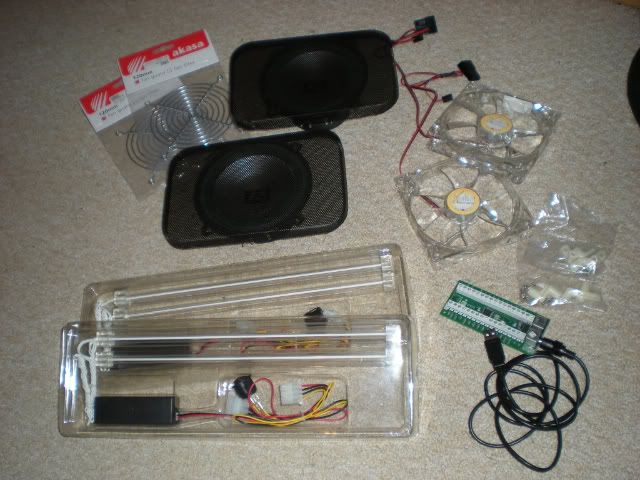

things have also started to come in the post also.

jahilton2002 · « **Reply #21 on:** January 16, 2011, 05:08:40 pm »

some more updates...... some comments would be nice guys

jahilton2002 · « **Reply #22 on:** January 18, 2011, 04:49:55 pm »

More updates

but still no comments?

Erik · « **Reply #23 on:** January 18, 2011, 07:15:03 pm »

Looks like it's coming together nicely. I like the curves at the bottom. Where are the speaker grills from?

Donkbaca · « **Reply #24 on:** January 18, 2011, 07:43:54 pm »

I agree, it all looks very clean and straight

yotsuya · « **Reply #25 on:** January 18, 2011, 08:57:42 pm »

I like how you have the back as one piece.

jahilton2002 · « **Reply #26 on:** January 19, 2011, 03:21:56 am »

thx for the comments guys, the speaker grills are just from an old set of hifi speakers.

jahilton2002 · « **Reply #27 on:** January 22, 2011, 08:09:46 am »

Here's some more updates.... happy birthday to my uncle who is the master behind the cab build

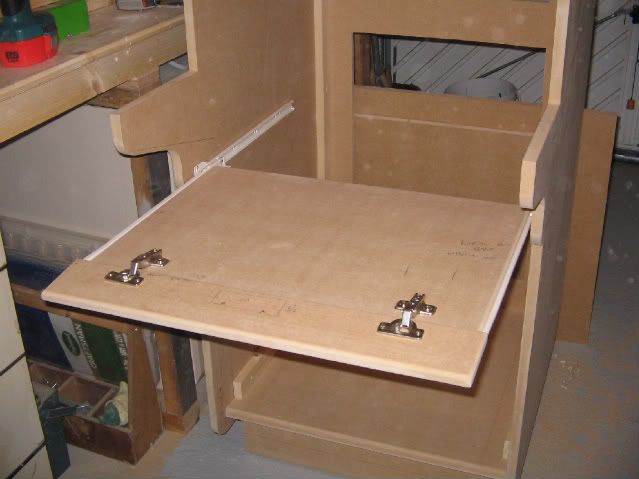

Nephasth · « **Reply #28 on:** January 22, 2011, 08:42:29 am »

I like that hinged keyboard tray.

jahilton2002 · « **Reply #29 on:** January 22, 2011, 02:10:00 pm »

more updates

DirtyDachshunds · « **Reply #30 on:** January 22, 2011, 02:29:10 pm »

I also really like the hinged keyboard tray idea. I wish this thread was around before I started my cab, I woulda done my keyboard tray the same way.

Looking good.

jahilton2002 · « **Reply #31 on:** January 22, 2011, 02:45:19 pm »

thx for the comments guys, feedback means alot so plz keep em comin'

Nephasth · « **Reply #32 on:** January 22, 2011, 03:00:48 pm »

Are you waiting to cut the t-molding channels in this cab? Or is this not going to have t-molding? I know you asked about red t-molding in another thread, but not sure if it was for this project or another game you might have.

jahilton2002 · « **Reply #33 on:** January 22, 2011, 03:05:02 pm »

yes it going to have t-mould and red like you said....

jahilton2002 · « **Reply #34 on:** January 28, 2011, 12:34:48 pm »

dugg8 · « **Reply #35 on:** January 28, 2011, 12:40:55 pm »

The cabinet looks really nice. I'd really think twice about installing all of those buttons on the control panel......less is much better when it comes to control panels.....IMO

Nephasth · « **Reply #36 on:** January 28, 2011, 12:50:29 pm »

Quote from: dugg8 on January 28, 2011, 12:40:55 pm

The cabinet looks really nice. I'd really think twice about installing all of those buttons on the control panel......less is much better when it comes to control panels.....IMO

Agreed.

Donkbaca · « **Reply #37 on:** January 28, 2011, 12:53:55 pm »

Why do you need so many buttons?

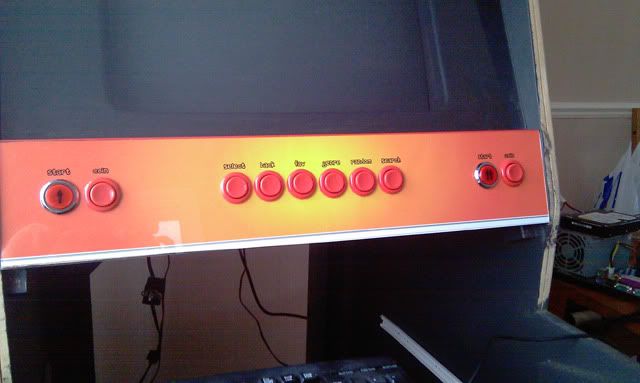

jahilton2002 · « **Reply #38 on:** January 28, 2011, 01:06:40 pm »

i knew i was gonna get roasted for that

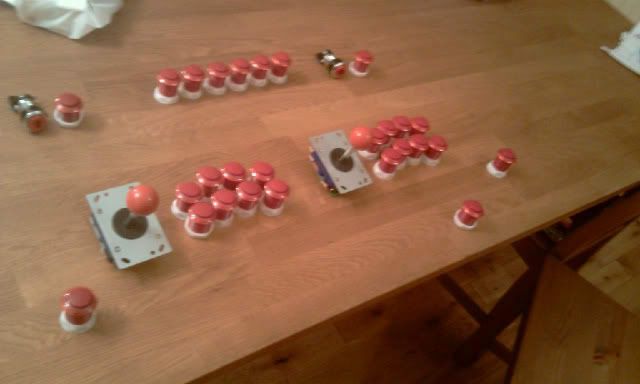

bottom three are pinball

8 butons per player n64/ps1/ps2/ps3

1player + start (mame)
2player + start (mame)

middle for HS fe, genre,menu,pause etc etc

my family will use it alot and i want them to be able to use the functions with having to "ask" how to use it.

i dont want to use a shift key as each buttons function is labeled, here's my cp artwork;

jahilton2002 · « **Reply #39 on:** January 28, 2011, 01:08:42 pm »

thinking about i could put the buttons on the bottom of the monitor bezal if that makes sense

Nephasth · « **Reply #40 on:** January 28, 2011, 01:15:13 pm »

Quote from: jahilton2002 on January 28, 2011, 01:08:42 pm

thinking about i could put the buttons on the bottom of the monitor bezal if that makes sense

Not a bad idea.

jahilton2002 · « **Reply #41 on:** January 28, 2011, 01:18:06 pm »

Donkbaca · « **Reply #42 on:** January 28, 2011, 01:33:58 pm »

I think the buttons in the middle of the CP would look better if they were on the bezel.

Are you sure you want 8 buttons? From my experience, console games play better with control pads then joysticks. But whatever works best for you!

jahilton2002 · « **Reply #43 on:** January 28, 2011, 01:50:50 pm »

well thx for the opinions guys, gonna look into the bezel buttons

Nephasth · « **Reply #44 on:** January 28, 2011, 01:59:11 pm »

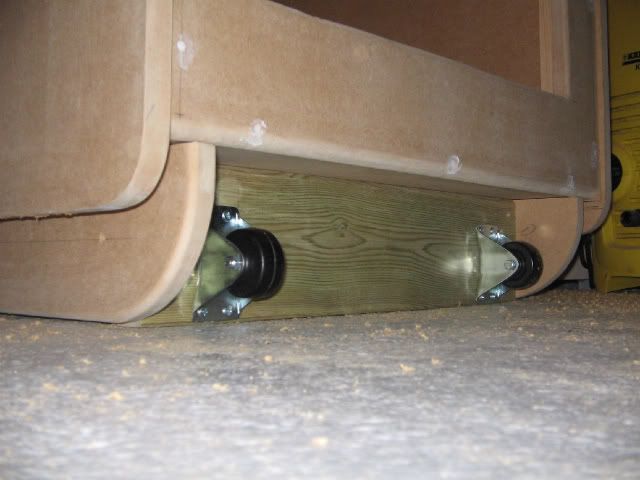

How do you like those wheels on your cab? I had an Atari DigDug with similiar wheels. I hated them, it always felt like it was going to get away from me when I was moving it.

opt2not · « **Reply #45 on:** January 28, 2011, 02:12:49 pm »

Nice clean looking build. Your Uncle's craftsmanship is superb!

Quote from: jahilton2002 on January 28, 2011, 01:06:40 pm

my family will use it alot and i want them to be able to use the functions with having to "ask" how to use it.

I'm assuming you mean, "without having to ask how to use it".
This is why it's vital for a more simple CP. The less buttons, the less intimidating it'll look, the less need to figure out what does what.

I personally don't like having mame function buttons. IMO it takes away from the arcade experience. Things like Pause (pausing an arcade game??), Back, Enter, a dedicated button for hyper-spinning? But hey, some people like that granularity of control, and there is no mistake this clearly is a Mame cabinet.

I'd go with the bezel mounting for these buttons if you're going to keep 'em. The cleaner the CP space, the better.
Many folks have gone this route, Kman mounted his to his bezel:

Then of course there's Pixelhugger's fine work:

thecig · « **Reply #46 on:** January 29, 2011, 09:21:59 am »

I really like the look of this cab, like you I was inspired to make my own by seeing Martijn's awesome SF cab.

I'm fairly useless with tools, even tho my dad's a builder and would have all the required tools.

So instead a mate of a mate is giving me his old cabinet that is just sitting in his garage FOR FREE! Can't wait.

I am very keen to see how u do the art for this cab tho, to see if i can steal some ideas

Good luck, can't wait for more updates.

jahilton2002 · « **Reply #47 on:** January 29, 2011, 10:06:22 am »

artwork is done mate......... check my first post for the link

thecig · « **Reply #48 on:** January 29, 2011, 11:18:24 pm »

**facepalm**

Can't wait to see how u do the menu buttons on the bezel, i think i'll be doing the same.

jahilton2002 · « **Reply #49 on:** January 30, 2011, 05:39:42 pm »

Made more progress tonight, thought i'd take some pics of some of the "ATTENTION TO DETAIL" of the cab,

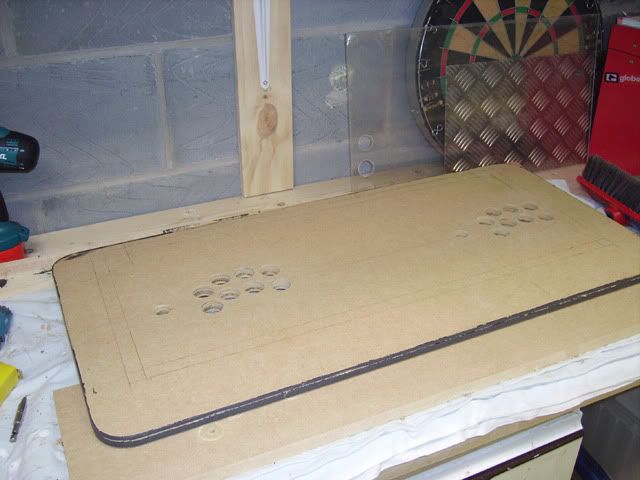

CP gonna get cut next along with the marquee, then its time to attack the monitor

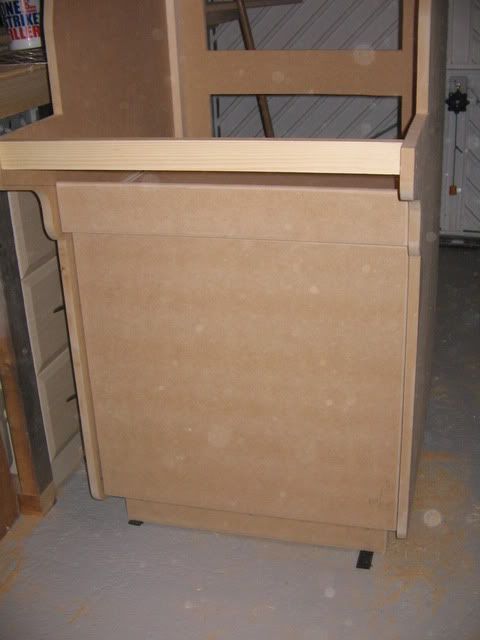

back of the cab with both doors now fitted. note curved top edge;

CP box test fitted with pics of the beveald cable holes;

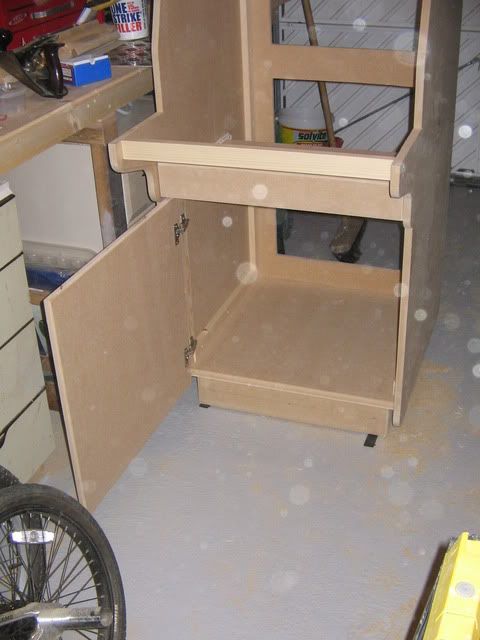

Pics of inside of the cab, mainly of the inside of the doors.

jahilton2002 · « **Reply #50 on:** January 31, 2011, 05:10:35 pm »

more updates comments welcome.

locks to keep little fingers out... and some vents that might be painted black;

jahilton2002 · « **Reply #51 on:** February 04, 2011, 05:23:58 pm »

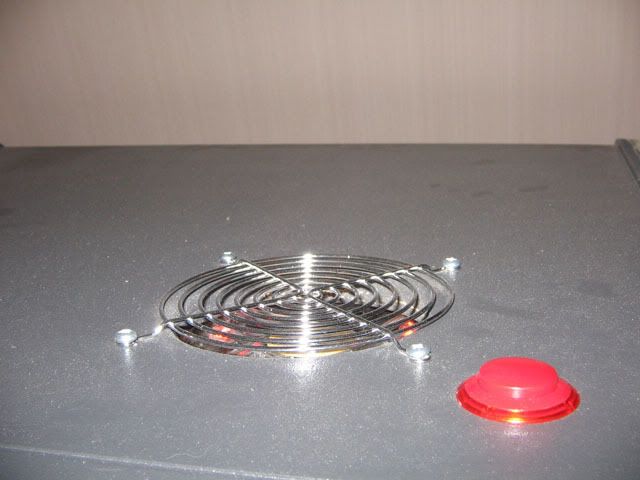

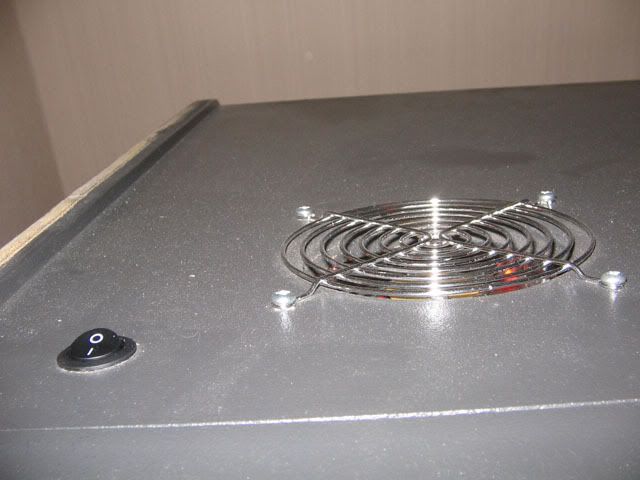

pics of exhaust fan outlet on top (120mm)

CP

plz keep the comments coming

jahilton2002 · « **Reply #52 on:** February 06, 2011, 04:30:24 pm »

Got screenage!

comments plz good or construtive

Nephasth · « **Reply #53 on:** February 06, 2011, 06:18:04 pm »

Going with scart on this one?

jahilton2002 · « **Reply #54 on:** February 07, 2011, 01:05:38 pm »

yeah vga to scart

jahilton2002 · « **Reply #55 on:** February 08, 2011, 05:12:22 pm »

Screen fitted;

base for thr PCB to sit on

plz comment

Nephasth · « **Reply #56 on:** February 08, 2011, 06:50:27 pm »

That looks sharp! I like the shelf/base for the TV's board.

n88n · « **Reply #57 on:** February 11, 2011, 11:57:35 am »

I love Street Fighter Cabs! This one looks to be a great one as well. Keep up the good work.

emphatic · « **Reply #58 on:** February 11, 2011, 01:33:43 pm »

Looks great!

jahilton2002 · « **Reply #59 on:** February 13, 2011, 12:00:08 pm »

jahilton2002 · « **Reply #60 on:** February 13, 2011, 12:01:42 pm »

plz keep the comments coming guys, it means alot.... can't wait to get paint and art work on

Gaston77 · « **Reply #61 on:** February 15, 2011, 12:46:55 pm »

Wow, your cab is looking awesome!
Do you have the plans for this cab since my hands are itching to start project number 2 (my first project was a Neo-Geo cab) and this cab looks SWEEEEET!
How did your uncle make those nice curbs in the woodwork? Truly the hand of a master.
Question; why did you put screws in the bezel(on each corner of the monitor)? Does it serve a purpose or is there another reason that I'm missing?
Because those shiny little bulbs (painted or not) will annoy you when you're hurtling fireballs. Trust me, one of my mistakes.
And I understand the keyboard tray for practical purposes, but I am not a fan of 'em.
Keep em coming and if you have the plans or if you can redirect me to where you got em, I would be grateful!!!

leapinlew · « **Reply #62 on:** February 15, 2011, 04:27:41 pm »

You might want to revisit the marquee area. If your marquee is going to be the entire width of the cab, the marquee retainer wood you have installed will block the light and create a dark spot where your artwork should be lit.

leapinlew · « **Reply #63 on:** February 15, 2011, 04:42:33 pm »

Also, like Nephasth said - where is the T-molding slot? Do you plan on cutting a t-mold slot? It's too late now, but you really should cut a t-mold slot early so if you make a massive mistake, you can recut a side. Also, make sure you don't hit a screw or anything which could cause you to lose control of the router.

Looking good.

jahilton2002 · « **Reply #64 on:** February 16, 2011, 08:14:46 am »

yes it is having t-mould.....i dont understand why you think its too late now? we have lots of room, and the cab is being dismantled to be painted anyway.... the marque perspex is etched at the ends, works kinda like fibre optics.... so no dark spots. The keyboard tray is a must for me...... the FE isn't final yet so still lots to do.....the tray is hidden and will be hard to see once painted. the "bolts" are used to see if the screen looked ok...... a bezel along with perspex is to follow.

thx for you comments keep em coming.

jahilton2002 · « **Reply #65 on:** February 16, 2011, 08:22:25 am »

Quote from: Gaston77 on February 15, 2011, 12:46:55 pm

if you have the plans or if you can redirect me to where you got em, I would be grateful!!!

its based on a dynamo, but didn't work from plans, just pics. after its done i'll take measurements

opt2not · « **Reply #66 on:** February 16, 2011, 11:02:44 am »

Quote from: jahilton2002 on February 16, 2011, 08:14:46 am

yes it is having t-mould.....i dont understand why you think its too late now?

Quote from: leapinlew on February 15, 2011, 04:42:33 pm

It's too late now, but you really should cut a t-mold slot early so if you make a massive mistake, you can recut a side.

jahilton2002 · « **Reply #67 on:** February 16, 2011, 11:51:28 am »

i could recut a side now if i wanted......... you've confused me?

HaRuMaN · « **Reply #68 on:** February 16, 2011, 12:01:45 pm »

Quote from: jahilton2002 on February 16, 2011, 11:51:28 am

i could recut a side now if i wanted......... you've confused me?

There is a chance you can have a mishap while cutting the t-molding slot, thereby ruining your side.

leapinlew · « **Reply #69 on:** February 16, 2011, 12:46:45 pm »

Quote from: jahilton2002 on February 16, 2011, 11:51:28 am

i could recut a side now if i wanted......... you've confused me?

I didn't realize you plan on disassembling for paint. So, even if you screw up a side, or have an issue you should be able to fix it.

However, it just makes sense to slotcut your side before putting any screws in it or anything else. Just ensures you won't have an accident while cutting the slot.

penjuin · « **Reply #70 on:** February 16, 2011, 04:25:22 pm »

how did you get those edges so consistently bevelled? impressive work.

jahilton2002 · « **Reply #71 on:** February 16, 2011, 04:34:50 pm »

thx for the comments guys. sorry, you all confused me LOL. i was having probs get red t-mould in the uk.... so i started the cab thinking i might not be able to get t-mould. thats why theres no t-slots yet.... the edges are done with a router, and alittle toolin'.

thx for the comments.

SNAAKE · « **Reply #72 on:** February 22, 2011, 02:17:23 pm »

why 8 buttons??

looks good either way. cabinet looks just like the old school dynamo.

jahilton2002 · « **Reply #73 on:** March 01, 2011, 02:34:43 pm »

some updates, need to pull my finger out and get some artwork printed now

;

Gatsu · « **Reply #74 on:** March 01, 2011, 03:14:59 pm »

thats very impressive man. Super super clean and neat looking.

Keep up the great work! It's looking d@mn fine.

jmike · « **Reply #75 on:** March 02, 2011, 07:06:01 am »

this thing looks amazing! The attention to detail with every corner/curve really shows your dedication, (I mean even that TV shelf). Can't wait to see what's next.

Take plenty of pics

jahilton2002 · « **Reply #76 on:** March 02, 2011, 07:32:01 am »

comments like this really mean alot..... we're (we being myself and a business partner) are thinking of starting a cab making company here in the uk..... so comments like this really push us to start..... this cab is the first "arcade" cab that hes made. he being the other business partner..... hes a cabinet maker/carpenter by trader. And and you can tell.... his work is second to none! and he amazes me everytime i see him work

thx for the comments

Nephasth · « **Reply #77 on:** March 02, 2011, 09:48:16 am »

Quote from: jahilton2002 on March 02, 2011, 07:32:01 am

comments like this really mean alot..... we're (we being myself and a business partner) are thinking of starting a cab making company here in the uk..... so comments like this really push us to start..... this cab is the first "arcade" cab that hes made. he being the other business partner..... hes a cabinet maker/carpenter by trader. And and you can tell.... his work is second to none! and he amazes me everytime i see him work

thx for the comments

Uncle turned business partner

Your hobby is already starting to affect the lives of those around you. Keep up the good work!

VanillaGorilla · « **Reply #78 on:** March 05, 2011, 12:31:28 pm »

I like many aspects of your cabinet, good work so far!

Yor finishing details are nice with the rounded edges everywhere..

Few things I would reconsider though;

Reduce the amount of overhang on your control panel. The overage has no purpose, and just makes the monitor look smaller. If it was usable surface area, that would be different....

Player 2's button layout should be rotated slightly counter-clockwise, or it may be VERY uncomfortable to play when standing side by side. Since P2 stands slightly right of center, his right hand will have to rotate uncomfortably to the right to compensate for standing off-square, causing a hard bend at the wrist. I figured I'd at least mention this since you haven't drilled anything yet. I understand that symmetry is 'pretty', but with an 8-button layout, you really should reconsider your ergonomics a bit more (especially if you plan on bringing these to market). There is also too much spacing between the buttons. You would need GIANT hands to take advantage of your current layout. You also need to move player 1&2 further apart. It looks like there is only about an inch between P1's buttons and P2's joystick...That will make you sorry.

Have you ever visited slagcoin.com? they have great layout templates there...

jahilton2002 · « **Reply #79 on:** March 05, 2011, 05:31:35 pm »

thx for the comments i'll check the site out, i'v also changed the CP

fiited some CP latches aswell as the bezel, tinted perspex to follow, for people without a good eye.. the control panels shape has changed also;

jahilton2002 · « **Reply #80 on:** March 12, 2011, 06:38:33 am »

Got the t cutter today

uncle couldn't wait to cut it! (note how dark it is outside!)

just paint, artwork and the eletrics next

here are the pics;

CP Cut, (its cut high so when the plexi glass is fitted it will sit flush...... bottom is beveled and will be painted black

jahilton2002 · « **Reply #81 on:** March 18, 2011, 09:45:20 pm »

some more updates.... feels like we're getting closer now.... any comments welcome

;

VanillaGorilla · « **Reply #82 on:** March 19, 2011, 12:17:04 am »

Thats looking really sharp. Don't ya just love that feeling when you cant wait to do something! Thats what the hobby is about. Looks like you are enjoying your work, and I see you visited slagcoin, good choice on the layouts. Is that the astro city layout? If so, are you using the different p1 & p2 layouts? I was surprised at the subtle differences between the two in terms of spacing, and now having drilled them, its amazing how well they fit your fingers.

I made a panel before where I used only the p1 layout for both players, and it felt like your wrist was gonna break after a while if you were in the p2 position..Thinking back, it definitely gave me the upper hand in Street fighter 4 when I had friends over to play!

joelea · « **Reply #83 on:** March 21, 2011, 06:35:04 am »

I'm about 90% finished on my cab and this thread has made me want to scrap it and start again.

Those rounded edges and neat wood work all round are an inspiration to me.

When the moon is not full and I've rehearsed my spiel, I'll try and talk the missus round to giving me some "garage" time again

Woodshop Flunky · « **Reply #84 on:** March 22, 2011, 01:51:19 pm »

This is looking good. Where did you get your Marquee retainer. The stuff I've seen looks like it has a much larger radius than what you have.

Erik · « **Reply #85 on:** March 31, 2011, 07:58:04 pm »

update plz

i'm dying to see how t-molding looks around those beveled edges of the control panel

jahilton2002 · « **Reply #86 on:** April 01, 2011, 06:41:47 am »

thx for the kick up the arse guys... lol i'm gonna get some paint at the weekend.... get it painted..... almost got the artwork printed.... then the tmould will go on.....

it isn't a "Marquee retainer". its a kitchen worktop edge strip

and ALLOT cheaper then a marguee retainer, even tho its the same thing lol

jahilton2002 · « **Reply #87 on:** April 01, 2011, 05:39:09 pm »

got the paint tonight... so will be painted soon..... here's some pics of the perpex being cut on the cp

plz keep the comments coming thx;

excess perspex

el toolio

like a glove

trial fit to see it t-barb is flush with top....... it is

underside showing bevaled edge will be painted black also;

Nephasth · « **Reply #88 on:** April 01, 2011, 05:48:19 pm »

Quote from: jahilton2002 on April 01, 2011, 05:39:09 pm

like a glove

No. Like socks on a rooster. Lookin' good!

jahilton2002 · « **Reply #89 on:** April 05, 2011, 04:49:57 pm »

socks on a rooster? not heard that one before lol

javeryh · « **Reply #90 on:** April 05, 2011, 05:41:15 pm »

Make sure you sand and polish the edge of the plexiglas - it will really give it a "professional" look and you will be amazed at the difference (the router always leaves scuff marks along the edge).

Can you post more pics/details on how you are planning to access the hinges inside your CP? I see the (hidden) holes for your hands to get in there but how do you get to them? Does the entire CP come off first?

Finally, how are you going to power on your TV when you power on the computer - is that going to be an issue?

This thing is looking really sharp - I can't wait to see some art on there.

Nephasth · « **Reply #91 on:** April 05, 2011, 06:32:01 pm »

Quote from: jahilton2002 on April 05, 2011, 04:49:57 pm

socks on a rooster? not heard that one before lol

What? You don't keep socks on your roosters across the pond?

jahilton2002 · « **Reply #92 on:** April 06, 2011, 02:13:16 pm »

no we dont lol

the latches for the control panel are easily gotten to via the front "door" or via the keyboard draw....

the tv will be powered via a two stage switch from on top of the cab..... first powers the pc.... second stage powers the tv..... the scart to vga is wired to auto switch to AV (although this hasn't been tested yet)

not sure if the power switch for both the pc and tv can be on the same parallel wired switch...... if that makes sense...... but i'll look more into this as i get there.

thx for the comments

jahilton2002 · « **Reply #93 on:** April 06, 2011, 02:14:44 pm »

hear show the cp catches in more detail

Nephasth · « **Reply #94 on:** April 06, 2011, 02:55:14 pm »

Quote from: jahilton2002 on April 06, 2011, 02:13:16 pm

not sure is the power switch for both the pc and tv can be on the same parallel wired switch...... if that makes sense...... but i'll look more into this as i get there.

I have wondered this myself and thought it would be best to use a DPDT or DPST momentary switch to keep the circuits seperate. However, I couldn't find a DPDT or DPST microswitch that would fit on the end of an arcade button, so if you want an arcade button for the power button, this wouldn't work. But if you're flexible you can probably find a DPDT or DPST momentary switch/button that wouldn't look half bad.

Donkbaca · « **Reply #95 on:** April 06, 2011, 02:58:38 pm »

You can always use a smart strip to power on the TV when the computer is turned on, or vice versa

javeryh · « **Reply #96 on:** April 06, 2011, 03:13:40 pm »

Quote from: Donkbaca on April 06, 2011, 02:58:38 pm

You can always use a smart strip to power on the TV when the computer is turned on, or vice versa

That's only if the TV has an actual on and off switch though, right? My 19" bedroom TV will not turn on from a light switch, for example. If I turn it off, the only way to turn it back on is to press the power button.

Donkbaca · « **Reply #97 on:** April 06, 2011, 03:23:38 pm »

There are ways to fix that. One way is to keep the power button pressed down. Then it should work with the switch

Also, you could set the power switch so that the TV is the main, and set the bios on the computer to wake on power.

jahilton2002 · « **Reply #98 on:** April 06, 2011, 04:43:03 pm »

would this mean the tv was always on??? even on a black screen it would still be lit?

Ond · « **Reply #99 on:** April 06, 2011, 05:13:43 pm »

Just read this thread through. Nice router work and curves, very pleasing to look at.

Ond

jahilton2002 · « **Reply #100 on:** April 06, 2011, 07:08:58 pm »

ah thx man

thinking of putting a site together...with a blog etc etc... space invaders cab next... then a cocktail..... just ideas tho at the mo.

jahilton2002 · « **Reply #101 on:** April 07, 2011, 04:02:50 pm »

More updates, just alittle more attention to detail things really...... didn't like how you could see the top of the CP box when the lid was open..... so tmould fixed that

.

take self circumcision tool;

cut some slots;

test fitted

;

NauticaLNaughT · « **Reply #102 on:** April 20, 2011, 09:38:19 pm »

Loving this cabinet so far, it's given me some good ideas for my first build. I'm making a shopping list and was hoping you could tell me what different types and size router bits were used?

jahilton2002 · « **Reply #103 on:** April 21, 2011, 07:26:53 pm »

Quote from: NauticaLNaughT on April 20, 2011, 09:38:19 pm

Loving this cabinet so far, it's given me some good ideas for my first build. I'm making a shopping list and was hoping you could tell me what different types and size router bits were used?

here you go....

1638 4 wing 1.6mm slot cutter - 1644 18mm guided ovolo cutter - 1647 guided twin flute trimmer - 1649 9mm guided ovolo cutter

jahilton2002 · « **Reply #104 on:** May 11, 2011, 04:38:52 pm »

More updates, cp to follow...

ignore the shadow in the marquee, don’t have the tubes fitted yet... using a make-shift tripod flood light shining into the back of the cab

SNAAKE · « **Reply #105 on:** May 13, 2011, 12:46:03 pm »

what kind of marquee retainer is that? the top one looks thin(better) than standard happ stuff. either way everything looks good. cant wait for the final pix

jahilton2002 · « **Reply #106 on:** May 14, 2011, 02:23:36 pm »

some more updates, started to paint also;

jahilton2002 · « **Reply #107 on:** May 15, 2011, 05:41:34 am »

my photographic skills are poor, so this is just a teaser...just a mock-up. more to follow

jahilton2002 · « **Reply #108 on:** May 16, 2011, 02:18:20 pm »

another mock up shot!.......

DirtyDachshunds · « **Reply #109 on:** May 16, 2011, 02:25:53 pm »

Looking sharp. I like the bright colors

jahilton2002 · « **Reply #110 on:** May 21, 2011, 05:05:21 pm »

started to paint, fitted lights but was worried about hot spots...... looks great better than i thought it would!

jahilton2002 · « **Reply #111 on:** May 23, 2011, 05:05:19 pm »

more paintage and exhaust fan guards fitted

comments welcome.

emphatic · « **Reply #112 on:** May 23, 2011, 06:04:50 pm »

Paint job looks very good!

opt2not · « **Reply #113 on:** May 23, 2011, 06:46:29 pm »

Looks like a fine job so far. I'm still skeptical of the possible marquee shadows on the sides from those framing blocks. I would have taken the advice of your fellow byoac'rs here and removed those. But you should post some pictures of it lit up with the installed lights, to silence the skeptics like me.

How heavy is the cabinet? Looks like a lot of wood in this build, which could make this thing a beast in weight.

Also, like SNAAKE asked, what are you using for the retainers? The top one looks cool being so thin.

jahilton2002 · « **Reply #114 on:** May 24, 2011, 03:55:19 am »

the marquee retainer is a kitchen worktop edge strip......

jahilton2002 · « **Reply #115 on:** May 29, 2011, 12:58:44 pm »

little update

jahilton2002 · « **Reply #116 on:** June 01, 2011, 06:20:54 am »

little update

mgb · « **Reply #117 on:** June 01, 2011, 06:10:52 pm »

This is looking freakin' nice, great attention to detail.

jahilton2002 · « **Reply #118 on:** June 04, 2011, 05:14:16 pm »

here you can see the right side (player 2) right pinball fliper (left red button) and nudge (right red button).

here the front pinball plunger button and front nudge.

jahilton2002 · « **Reply #119 on:** June 06, 2011, 04:56:11 pm »

more mock up updates...... almost done building the cab now, just the CP box to paint and the sideart to fit..... then on with the wiring! :thrasher:

Martijn · « **Reply #120 on:** June 07, 2011, 06:25:23 am »

looking good there Jahilton, i like the tv table shape

i can see u use same sort of marquee holder like i did, but you placed it on top of te speaker panel, if you want to hide it, you could make a 45 degree angel on the speaker panel with a trim bit and then mount the strip on top of that , then you wont see the marquee holder that much.

like i did here

keep it up!

jahilton2002 · « **Reply #121 on:** June 07, 2011, 08:15:28 am »

thx for the comments martiijn,

i'd like to thank you for the motivation behind this build...... i would of never built a cab if it wasn't for yours! thx!! Already draftin' plans for the "Space invaders" cab

!

McFlyDMC12 · « **Reply #122 on:** June 07, 2011, 02:59:18 pm »

Quote from: jahilton2002 on May 23, 2011, 05:05:19 pm

more paintage and exhaust fan guards fitted

I absolutely love the paint job on your cab. What kind of paint did you use? It sort of looks like a matt/flat textured finish (which I'd like for my own cab someday).

Keep up the good work! Very inspirational!

jahilton2002 · « **Reply #123 on:** June 07, 2011, 06:21:25 pm »

just the CP box to paint and drill now...... then shes off to the living room..... and the wiring will begin. cut hole for the admin controls...... i hate shift keys sorry.... and a "power" button up top..... the button is just a test fit.... a black one will be used.

kalars123 · « **Reply #124 on:** June 07, 2011, 11:31:45 pm »

Quote from: jahilton2002 on June 07, 2011, 06:21:25 pm

just the CP box to paint and drill now...... then shes off to the living room..... and the wiring will begin. cut hole for the admin controls...... i hate shift keys sorry.... and a "power" button up top..... the button is just a test fit.... a black one will be used.

I did this about 3 seconds after i saw this, it's been killing me where to put my PC power switch.

jahilton2002 · « **Reply #125 on:** June 08, 2011, 03:31:23 am »

Quote from: McFlyDMC12 on June 07, 2011, 02:59:18 pm

I absolutely love the paint job on your cab. What kind of paint did you use? It sort of looks like a matt/flat textured finish (which I'd like for my own cab someday).

Keep up the good work! Very inspirational!

http://www.diy.com/diy/jsp/bq/nav.jsp?action=detail&fh_secondid=11477515&fh_location=//catalog01/en_GB/categories%3C{9372013}/categories%3C{9372030}/categories%3C{9372120}/specificationsProductType=emulsions

not sure why it looks grey in the pics...... uk based company also.

two coats with a brush then a 3rd coat with a roller.... let the paint go alittle tacky so the roller pulls up the paint so that you get the texture effect.

jahilton2002 · « **Reply #126 on:** June 09, 2011, 04:50:18 pm »

ok the cab is at home now.... the workshop looks strange with her there (decided its a girl BTW)

first sorry about the pics..... i had to use my phone...... dont do it any favs if im honest...... but i just had the share them!

test hardware to test the screen really..... then i couldn't help myself and started fitting buttons lol;

nintendoid · « **Reply #127 on:** June 12, 2011, 09:16:51 am »

is that HYPERSPIN your using as the frontend?? if not, what is it??

Hunk_4TH · « **Reply #128 on:** June 12, 2011, 04:18:03 pm »

It's definitely Hyperspin

jahilton2002 · « **Reply #129 on:** June 12, 2011, 05:39:48 pm »

yes it is hyperspin... its great!

gbeef · « **Reply #130 on:** June 13, 2011, 11:52:45 am »

coming along really nice. There some awesome SF cabs on here.

jahilton2002 · « **Reply #131 on:** June 13, 2011, 05:31:22 pm »

thx

more updates;

Ok some more updates..... fitted the sticks of joy and buttons to the CP..... Cp box is still in paint so pics with the CP on the arcade are just mockup so the angle and height is wrong in the pics.....i've started to smile now when i walk into the room

sorry for some of the pics (phone)

would love to hear your comments.....

Martijn · « **Reply #132 on:** June 14, 2011, 05:44:27 am »

Nice clean job on the control panel

In my oppinion a bit to large compared to the cab, but the artwork and plexy finish really makes it nice

almost there

maybe make 2nd player buttons yellow?

jahilton2002 · « **Reply #133 on:** June 14, 2011, 06:05:41 am »

the CP box isn't finished and not fitted in the pics..... i'll take more pics maybe tonight...... does look huge in the pics... but its at the wrong angle and too low...... just a trail fit... again thx for them comments

jahilton2002 · « **Reply #134 on:** June 14, 2011, 05:05:53 pm »

more updates:

CP box fitted along with CP. to be removed for sideart install.... machine works now... but again still waiting on cablin'

jahilton2002 · « **Reply #135 on:** June 15, 2011, 12:32:25 pm »

was having a few probs with the rgb to scart switching to the AV..... made this little gadget....

here:s the result!

jahilton2002 · « **Reply #136 on:** June 21, 2011, 06:26:53 pm »

started to do some of the CP.... its sooooo slow at this point.... snip snip cut cut zzzzzzzz

emb · « **Reply #137 on:** June 21, 2011, 11:22:47 pm »

Very nice wiring job!

jahilton2002 · « **Reply #138 on:** June 26, 2011, 06:02:31 pm »

Thx for the comments guys, some more updates;

com cables;

signal cable:

guess the game?

all for now thx

emphatic · « **Reply #139 on:** June 26, 2011, 06:10:32 pm »

Guess the game? You're kidding, right?

Super-clean wiring. Kudos.

jahilton2002 · « **Reply #140 on:** June 26, 2011, 06:25:30 pm »

Quote from: emphatic on June 26, 2011, 06:10:32 pm

Guess the game? You're kidding, right? Super-clean wiring. Kudos.

yeah your right!!! its sonic! yeay

segalee · « **Reply #141 on:** June 27, 2011, 03:39:47 pm »

hope u release the plans for this after wonderfull looking cab

Woodshop Flunky · « **Reply #142 on:** June 28, 2011, 10:03:02 am »

+1 on the wiring job.

Cab looks great!

segalee · « **Reply #143 on:** June 29, 2011, 05:58:16 pm »

what did you use to clip the cable ties to?

HaRuMaN · « **Reply #144 on:** July 01, 2011, 10:25:57 am »

Quote from: segalee on June 29, 2011, 05:58:16 pm

what did you use to clip the cable ties to?

You can buy them at Home Depot / Lowes in the electrical section. I forget what they are called. They have self-adhesive backs.

Donkbaca · « **Reply #145 on:** July 01, 2011, 11:17:40 am »

they are zip tie anchors, they are right next to the zip ties

jahilton2002 · « **Reply #146 on:** July 01, 2011, 11:46:33 am »

yep thats them

jahilton2002 · « **Reply #147 on:** August 01, 2011, 09:48:02 am »

ok so started to get more time to start the arcade again... reason i've not been updating much.........................

Im a DADDY!!!!

more of the arcade, sorry again for my crap pics and all the dust!;

sound amp fitted.... wiring still WIP here so alittle messy;

speakers:

player start button leds wired;

computer power and light switch fitted and wired;

pc build done;

Donkbaca · « **Reply #148 on:** August 01, 2011, 12:10:05 pm »

Congrats on the new addition!

Woodshop Flunky · « **Reply #149 on:** August 01, 2011, 03:38:19 pm »

Your tiniest project is the neatest! Congrats!

jahilton2002 · « **Reply #150 on:** August 13, 2011, 06:16:46 am »

Sorry for the lack of updates guys, new babies really take lots of your time

shes great tho and can already to a 8 hit combo of street fighter 2! :proud:

anyway.... here's just alittle theme i made to match the look of the cabs artwork...... finished the cp wiring now..... just need to add the side art and waiting for my arcade VGA now :dancing2:

jahilton2002 · « **Reply #151 on:** August 16, 2011, 05:49:30 am »

Intro vid made

thx circo0

[YOUTUBE:2XNjv8wqUbU]

jahilton2002 · « **Reply #152 on:** October 03, 2011, 05:09:13 pm »

not been able to work on the cab for a while..... my daughter has taken most of my free time...... although shes at the age where she can play tetris now!

had some probs with the sound amp picking up FM radio..... thats sorted now.... fitted a new amp..... alittle vid also;

clicky movie below..... not sure how to inbed

jahilton2002 · « **Reply #153 on:** October 26, 2011, 01:22:19 pm »

Sounds coming from my livingroom woke me up today...... came do to find this...... made me laugh.... Mrs playin' Tekken LOL

gbeef · « **Reply #154 on:** October 26, 2011, 01:56:33 pm »

looking good so far very nice attention to details.
Can't wait to see that side art

jahilton2002 · « **Reply #155 on:** November 04, 2011, 03:57:00 pm »

Just alittle demo of where im at.... not got N64 in the list as i have not wired the pads in yet...... sorry for the crap quality...... and the mrs yellin' at me!!!

ripperman · « **Reply #156 on:** November 05, 2011, 09:20:29 am »

Quote from: jahilton2002 on June 15, 2011, 12:32:25 pm

was having a few probs with the rgb to scart switching to the AV..... made this little gadget....

here:s the result!

Bit of a strange one this but is there any chance you could post in more detail how you went about wiring your little rgb to scart dongle. Your cab is excellent by the way, you’re progress all along as mimicked my own so its been an interesting read!

jahilton2002 · « **Reply #157 on:** November 14, 2011, 06:21:17 pm »

Got the sideart done..... bed time now sorry for the fussy pics low light levels...... to say im happy is an understatement..... pics speak a million words!

jahilton2002 · « **Reply #158 on:** November 15, 2011, 02:10:52 pm »

no comments guys, im still smilin' !

borals · « **Reply #159 on:** November 15, 2011, 08:48:19 pm »

Cab is blowing my mind

jahilton2002 · « **Reply #160 on:** November 16, 2011, 07:52:08 am »

Quote from: borals on November 15, 2011, 08:48:19 pm

Cab is blowing my mind

jahilton2002 · « **Reply #161 on:** November 24, 2011, 04:44:29 pm »

DONE!
---------------------------------------------------------------------------

would just like to say thx to my uncle "Peter Elmes" because without his very skilled hands..... this wouldn't of even happened..... what started as just an idea..... became an expensive hobby..... THANK YOU

:adore:

---------------------------------------------------------------------------

jahilton2002 · « **Reply #162 on:** November 27, 2011, 05:46:20 pm »

Got a showcase site up and running

Seith · « **Reply #163 on:** November 27, 2011, 07:13:28 pm »

Very clean looking build! Love the finished product!

dextercf · « **Reply #164 on:** January 21, 2012, 09:33:04 am »

Lovely build dude!
Pretty gfx, clean cuts, all over a nice cab!

-0,003 points for the "box cp". Something about that large top-board and the sharp corners on the box underneath that doesn't fit the rest of the cab. No biggy tho!

jahilton2002 · « **Reply #165 on:** January 21, 2012, 09:48:52 am »

thx for the feedback, we changed the design on the second cab

http://forum.arcadecontrols.com/index.php?topic=116374.0

amurda99x · « **Reply #166 on:** January 21, 2012, 09:55:52 am »

Dude your cab from start to finish is awesome. Everything u did was outrageous and neat; from your wiring all the way to your side art. Congrats man!

This is actually only my 2nd post....I just joined this forum and now reading "build your own arcade" trying to get my knowledge about this --BINGO! Either that, or I was attempting to say "before" but it was too many letters to type-- I get cracking, but I just hope mine can even come half as close as yours and I'll be happy!


Main	Restorations	Software	Audio/Jukebox/MP3	Everything Else	Buy/Sell/Trade
Project Announcements	Monitor/Video	GroovyMAME	Merit/JVL Touchscreen	Meet Up	Retail Vendors
Driving & Racing	Woodworking	Software Support Forums	Consoles	Project Arcade	Reviews
Automated Projects	Artwork	Frontend Support Forums	Pinball	Forum Discussion	Old Boards
Raspberry Pi & Dev Board	controls.dat	Linux	Miscellaneous Arcade	Wiki Discussion	Old Archives
Lightguns	Arcade1Up	Try the site in https mode		Site News


Unread posts \| New Replies \| Recent posts \| Rules \| Chatroom \| Wiki \| File Repository \| RSS \| Submit news
