Author Topic: Re: UAII Style TMNT 4 Player Cabinet UPDATE: 90% Complete  (Read 3492 times)

0 Members and 1 Guest are viewing this topic.

dheck

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 64
  • Last login:December 27, 2022, 11:57:26 am
  • I want to build my own arcade controls!
Re: UAII Style TMNT 4 Player Cabinet UPDATE: 90% Complete
« on: February 03, 2016, 03:39:43 pm »

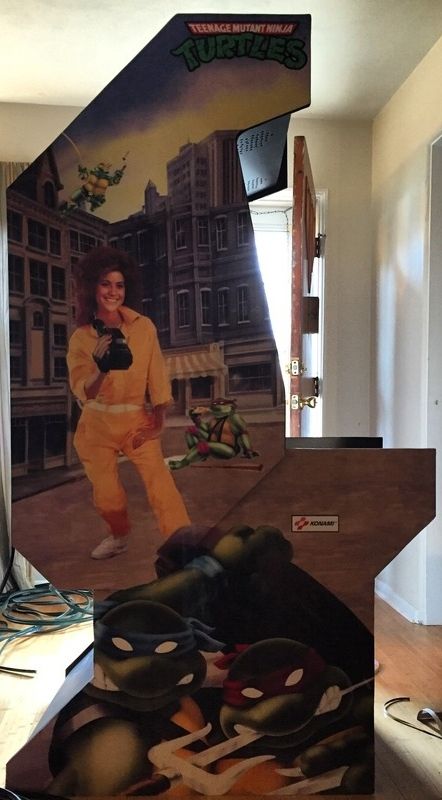

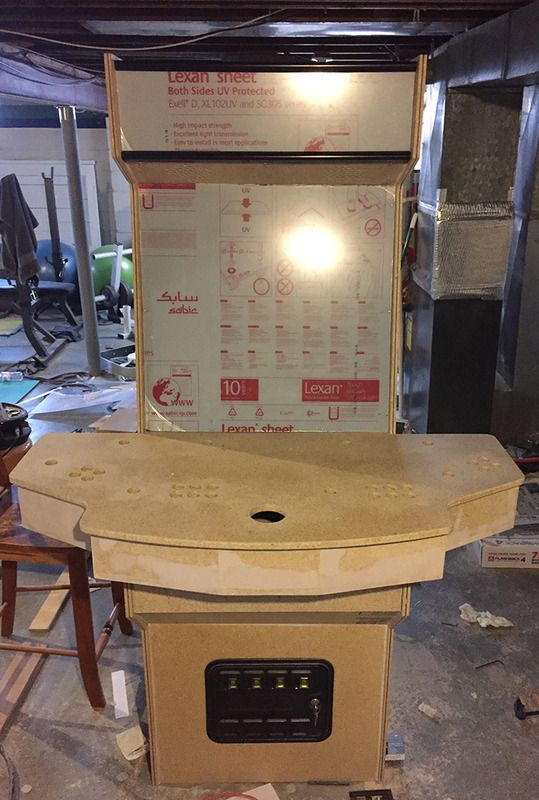

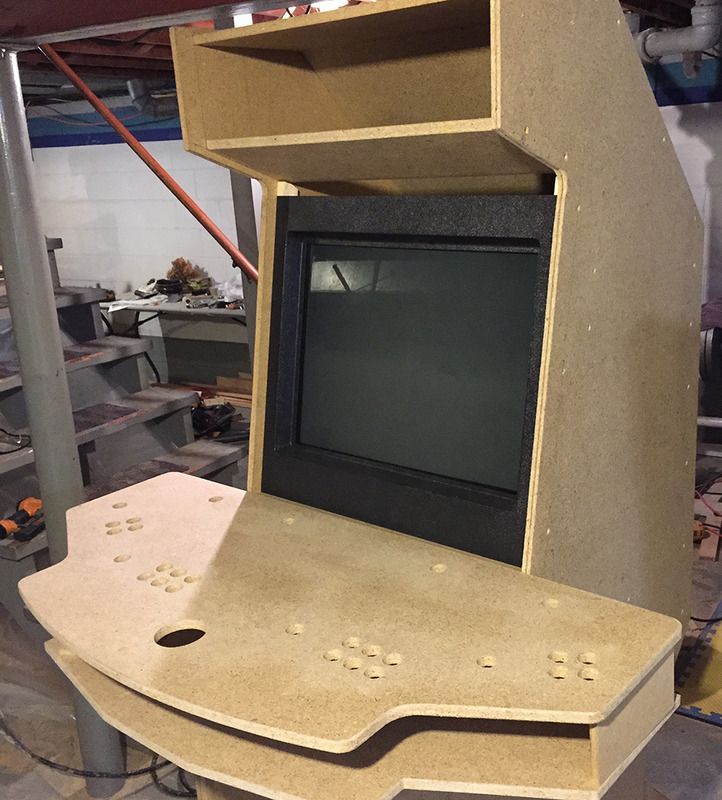

Hey guys.  I am far enough along now that I feel like I can post.  I've been working on this for maybe a year now but recently have had time to really get some things done.  I wanted to recreate the original TMNT Cabinet but update it a little in the style of the UAII cab.  The control panel is a design I worked up from reading all the great feedback from this forum.

All that is really left is to finish the painting, wire the control panel and apply the artwork.

I have sent to art off to print.  I took the original artwork for the side and control panel and modified it. I spent hours in photoshop filling in all the original button holes and what not so that I would have a clean slate for my own sides and control panel.

Now for the pics

This is using a 27" Sony CRT









« Last Edit: February 26, 2016, 09:20:51 am by dheck »
