What is this and how to connect to JAMMA?
« on: October 21, 2011, 04:24:29 pm »
I just got this board which I bought from TNT Amusement.
It's supposed to be TOKI, but I'm a bit confused to how to wire up this thing.
Are there perhaps anybody here who know this board and/or can guide me trought the pinouts so I can frankenstein a harness to fit a JAMMA harness perhaps?

I have a cocktail cab which currenty has Tetris Jamma board, but I would like to have the option to swap between these two games once in a while.




The seller also mentioned there was a humming sound during play.
I asked if this could be a "-5V issue", as to refeering to that toki pcb uses -5V for sound also. The seller replied he did not know, which could be a smokecloud answer turning out to be "NO, it's just not 100% condition".

Anyway, would be greatful for any help there might be!

dextercf

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 432
  • Last login:October 05, 2024, 06:30:51 pm
  • [thisispersonal]
Re: What is this and how to connect to JAMMA?
« Reply #1 on: October 21, 2011, 04:35:19 pm »

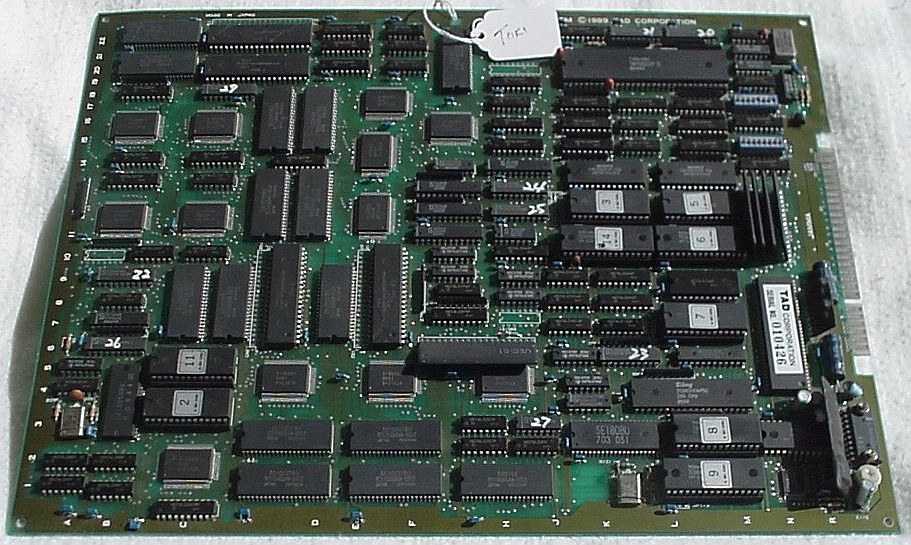

This was what I expected to recieve.. Are they just two different revisions?

dextercf

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 432
  • Last login:October 05, 2024, 06:30:51 pm
  • [thisispersonal]
Re: What is this and how to connect to JAMMA?
« Reply #2 on: October 21, 2011, 04:52:22 pm »
http://psiapd.com/gallery3/index.php/Virginia/Misc/PVN00002
This guy also have the same boards. expect the last one which is somewhat different..
The same roms are in my board (labeled UV101, UV02, UV03, etc..) which according to mikesarcade.com list is Space Invaders PT2..?

emphatic

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2017
  • Last login:Yesterday at 04:41:45 pm
  • -"Suck it, Donny!" -"No, YOU suck it.... more".
    • Emphatic's Video Game Collection
Re: What is this and how to connect to JAMMA?
« Reply #3 on: October 22, 2011, 01:55:50 pm »
That PCB is not Toki.  ::) It even has Taito screened on the surface and Toki is a TAD game. And it's

dextercf

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 432
  • Last login:October 05, 2024, 06:30:51 pm
  • [thisispersonal]
Re: What is this and how to connect to JAMMA?
« Reply #4 on: October 22, 2011, 05:04:18 pm »
That PCB is not Toki.  ::) It even has Taito screened on the surface and Toki is a TAD game. And it's
Yeah. This is what I have allso concluded. The seller told me (via email) to send pictures of what I have recieved and that he would look into it.

Btw, I see your swedish?
Any good tips on arcade forum and/or buy and sell links in scandinavia? I'm a norwegian my self, and I got the impression the arcade scene is bigger in Sweden than in Norway.

Also, you never finished your last sentence there.. :D

emphatic

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2017
  • Last login:Yesterday at 04:41:45 pm
  • -"Suck it, Donny!" -"No, YOU suck it.... more".
    • Emphatic's Video Game Collection
Re: What is this and how to connect to JAMMA?
« Reply #5 on: October 23, 2011, 08:04:06 am »
www.arkadtorget.se is great and we speak English just fine. I edited my last sentence and it got cut o-  :laugh2:

dextercf

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 432
  • Last login:October 05, 2024, 06:30:51 pm
  • [thisispersonal]
Re: What is this and how to connect to JAMMA?
« Reply #6 on: October 23, 2011, 02:16:23 pm »
Ok.
I was allready registered there, and have added my games (prylar) allready got one interested in this one.
Bye the way;

The seller got notified about the mistake, and was kind enough to let me keep this one and are shipping the Toki PCB on Monday. Great guy this Todd from TNT Amusement (www.tntamusement.com).

emphatic

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 2017
  • Last login:Yesterday at 04:41:45 pm
  • -"Suck it, Donny!" -"No, YOU suck it.... more".
    • Emphatic's Video Game Collection
Re: What is this and how to connect to JAMMA?
« Reply #7 on: October 23, 2011, 04:39:16 pm »
Ok.
I was allready registered there, and have added my games (prylar) allready got one interested in this one.
Bye the way;

The seller got notified about the mistake, and was kind enough to let me keep this one and are shipping the Toki PCB on Monday. Great guy this Todd from TNT Amusement (www.tntamusement.com).

Nice deal!

dextercf

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 432
  • Last login:October 05, 2024, 06:30:51 pm
  • [thisispersonal]
Re: What is this and how to connect to JAMMA?
« Reply #8 on: October 23, 2011, 06:14:34 pm »
Well, shipping and tax included i have payed about $180 for the game.
And to return it would total on shipping alone around $80-90.. and take about a month.
But yeah, did not expect service to be this good!

FrizzleFried

  • no one listens to me anyway.
  • Trade Count: (+4)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 5145
  • Last login:March 07, 2025, 10:44:09 am
    • Idaho Garagecade
Re: What is this and how to connect to JAMMA?
« Reply #9 on: October 26, 2011, 02:58:47 pm »
Todd @ TNT is the real deal.  He'll treat you right and make good on any mistake on his behalf.

Visit my arcade blog at: www.idahogaragecade.com (Updated 10-28-21)

dextercf

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 432
  • Last login:October 05, 2024, 06:30:51 pm
  • [thisispersonal]
Re: What is this and how to connect to JAMMA?
« Reply #10 on: October 26, 2011, 04:51:18 pm »
Todd @ TNT is the real deal.  He'll treat you right and make good on any mistake on his behalf.
This seems to be 100% correct!
I would have no problem ordering from him again.

Still, anyone know how to hook up this "bad boy"?
Where to Get them 17 pin Edge connectors?

matsadona

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 760
  • Last login:October 28, 2023, 06:00:12 am
Re: What is this and how to connect to JAMMA?
« Reply #11 on: October 28, 2011, 10:54:50 am »
If not Toki, then what is it? Or am I just plain blind and didn't see that reply here?
Building, collecting and playing arcade machines :)

dextercf

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 432
  • Last login:October 05, 2024, 06:30:51 pm
  • [thisispersonal]
Re: What is this and how to connect to JAMMA?
« Reply #12 on: October 28, 2011, 02:19:31 pm »
If not Toki, then what is it? Or am I just plain blind and didn't see that reply here?
It was guessed, and later varified, to be Space Invaders Pt2.

http://psiapd.com/gallery3/index.php/Virginia/Misc/PVN00002
This guy also have the same boards. expect the last one which is somewhat different..
The same roms are in my board (labeled UV101, UV02, UV03, etc..) which according to mikesarcade.com list is Space Invaders PT2..?

dextercf

  • Trade Count: (0)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 432
  • Last login:October 05, 2024, 06:30:51 pm
  • [thisispersonal]
Re: What is this and how to connect to JAMMA?
« Reply #13 on: October 30, 2011, 04:15:38 pm »
So, i have ordered some 34 pin Edge connectors in hope fit. As the taito board uses 32 pin connectors it seems.

I have found this pinouts from googeling, and hope they Are correct. Guess we Will find out when the connectors arrive;
http://arcarc.xmission.com/PDF_Dip_Switches_and_Pinouts/taitoinvaderpinout.pdf
