My finished cabinet!
deweyhewson:
I received some help on this board during the process, so I thought I'd share my finished project with everyone. The cabinet is a converted Smash T.V. cab (I made sure all of the components went to a good home of someone restoring his own Smash T.V. cab, so don't bite my head off for this... :D) First some stats, then some pictures.
Internals:

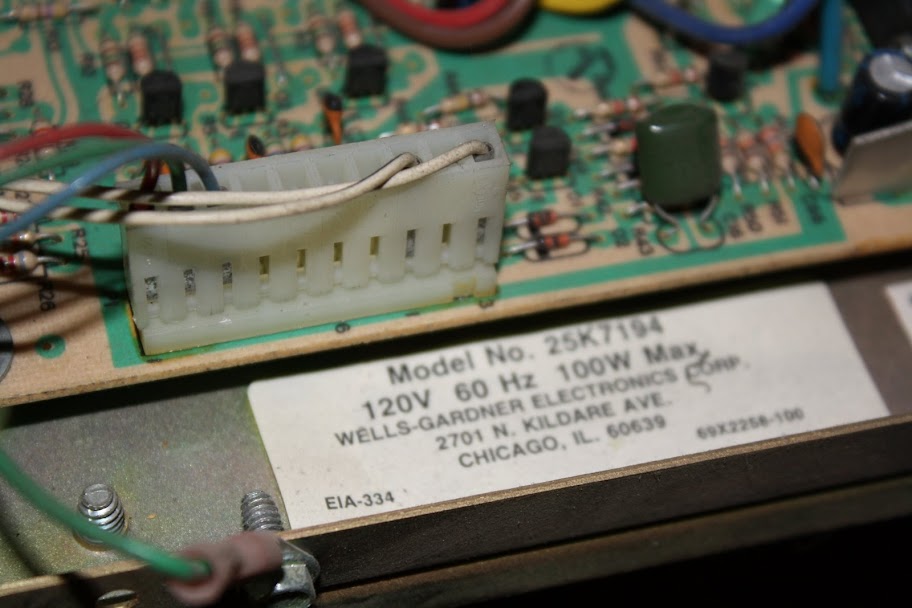

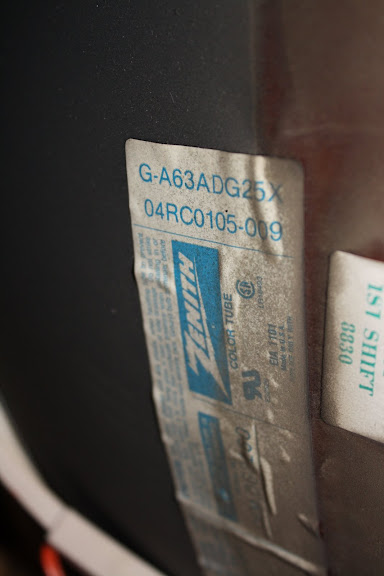

Wells-Gardner k7100 series arcade monitor (I had two, one with horrible burn-in, the other with a bad circuit board. Long story short, I swapped circuit boards, and now I have a perfect picture.)
Creative 2.1 sound system, which worked nicely as, along with the very nice speakers, had a little breakout control for the volume/bass which I mounted on top of my coin box for easy access.
Athlon 64 3500 , 1gb DDR system with a special ASUS A8V-X motherboard allowing me to replace the BIOS screen.
Smart Strip to power on computer, marquee, monitor, and speakers at the same time.

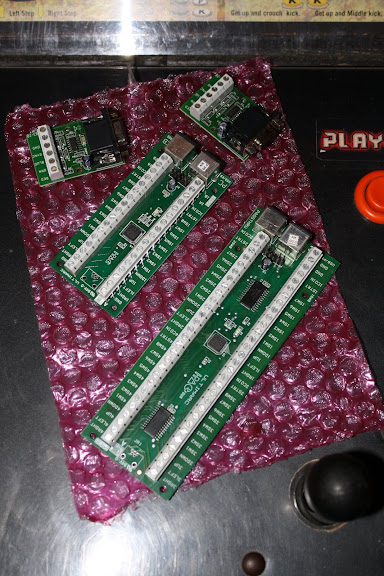

iPac 2 and ArcadeVGA boards from Ultimarc
Mag-Stik Plus joysticks, buttons from Ultimarc
Fully functional coin door to complete the authentic experience.
Custom marquee designed by me using artwork I created and vectorized myself. Printed at MameMarquees.
Software:
MameWAH running a custom layout I made myself
Background audio is from the Arcade Ambience Project and plays while in the menu. Movies are silent.
Preview artwork and movies were made by me.
TeamViewer Host running at all times (in the background, and not visible) to allow me to connect to the arcade computer and add/remove/manage games remotely.
Pictures:
The monitor, control panel, and marquee were not finished at this point.
The special button I mounted on top of the cabinet which operates as a power switch.
The Smart Strip.
My custom marquee.
The internals, which I never want to wire again. :D

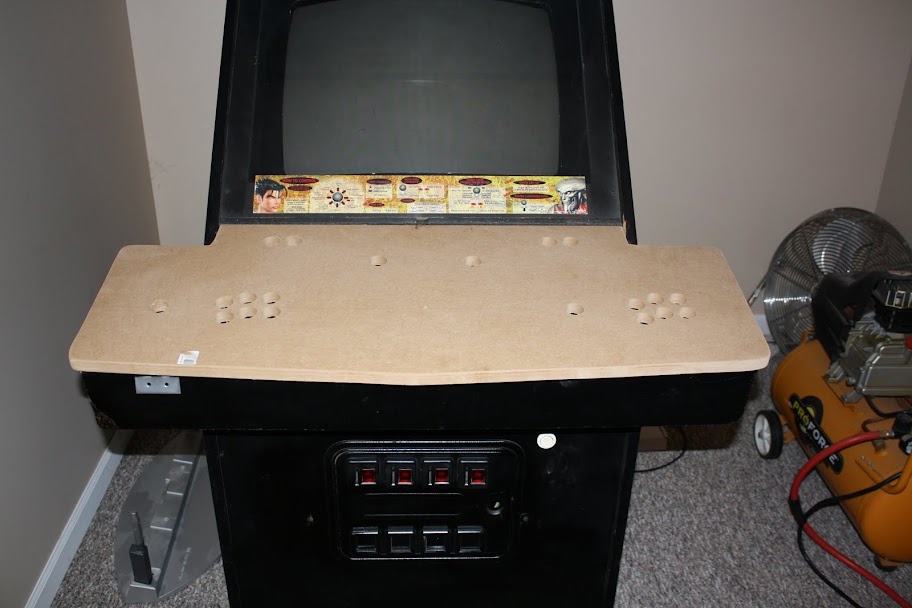

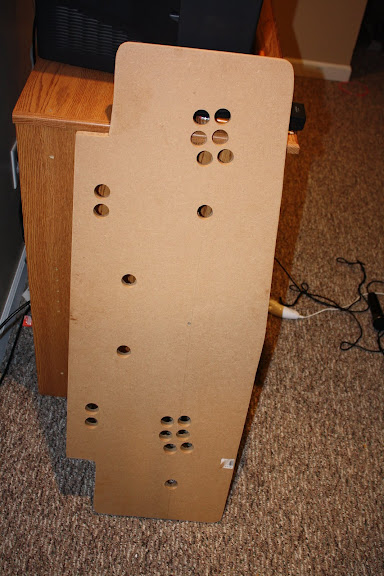

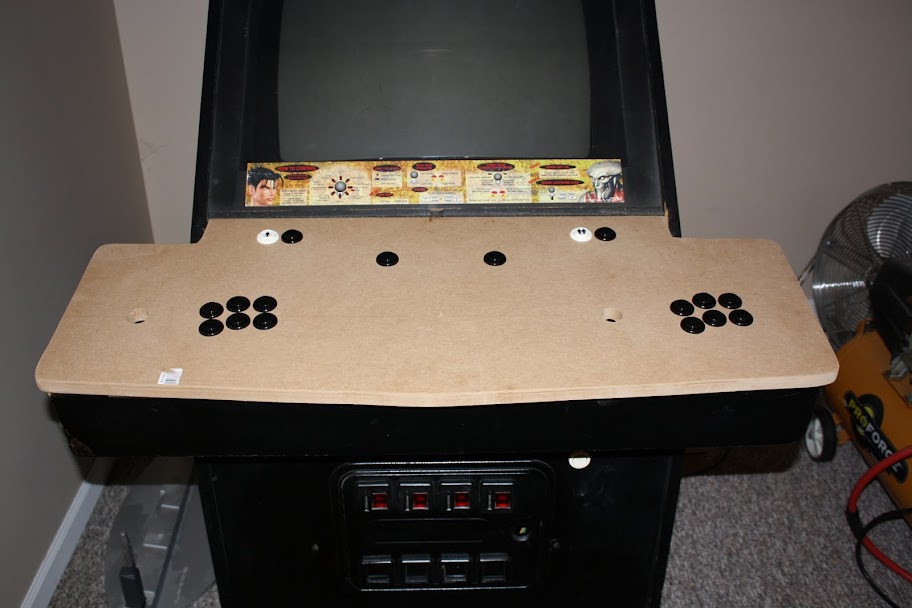

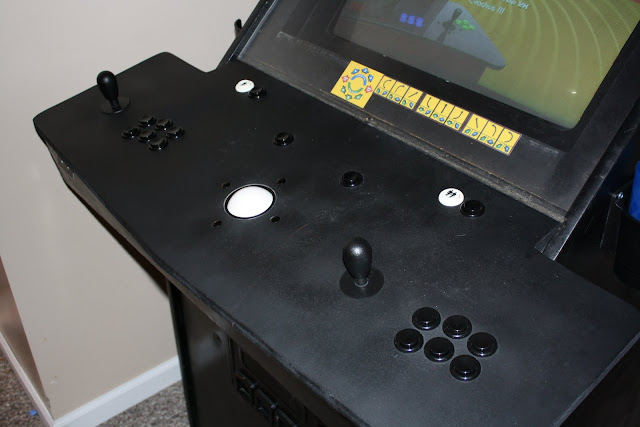

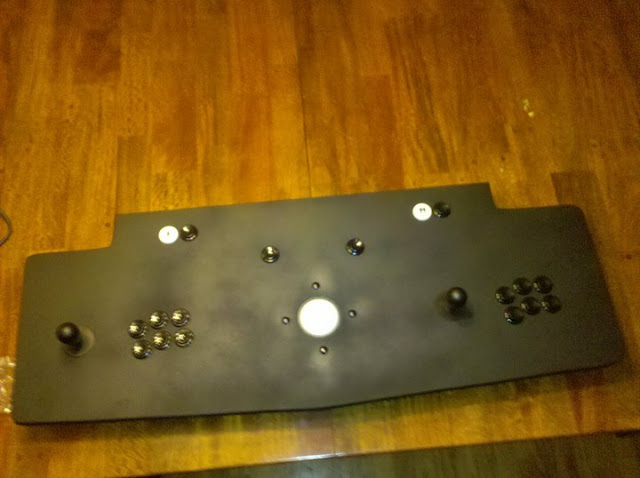

The control panel. I may end up creating some artwork for this at some point, but for now I think it looks good.
The computer I built for this cabinet.
The fully-functioning coin door.
The completed cabinet, powered off.
The front while powered on. Custom MameWAH menu is visible here.
Walkthrough Video:
Enjoy! Just thought I'd share the finished project! :D
Thanks a ton to: Andy at Ultimarc for his unceasing support, Scott at MameMarquees, and my father for helping me with the woodwork especially, and my wife, for her infinite patience and support of me pursuing a childhood dream. It wouldn't have come together nearly as well without them.
smalltownguy:
Awesome stuff. That monitor looks great. How did you do the monitor bezel...or is it original from the Smash TV conversion?
Seeing this makes me torn. I'm trying to decide whether or not I should try and retrofit a 20" rotating LCD in my Rolling Thunder conversion or just pull the trigger on a new build with a 27" TV via S-video.
:banghead:
ragnar:
My first post! Maybe second ......
What does the black button in the upper left of the control panel do?
deweyhewson:
I'm sorry I forgot to mention, the black button in the upper left of the control panel is for exiting back to the menu while in a game.
I know the iPac is capable of shift functions - and I have a couple set up, including one for F2 to adjust game settings - but I wanted people playing the cab to have a simple, straightforward method for doing it.
Correct, the monitor bezel and glass overlay are original to the cabinet; the bezel held up pretty well, but I needed to repaint the black border on the glass myself, which took 3 or 4 coats.
Malenko:
--- Quote from: deweyhewson on January 27, 2010, 08:27:02 pm ---I'm sorry I forgot to mention, the black button in the upper left of the control panel is for exiting back to the menu while in a game.
I know the iPac is capable of shift functions - and I have a couple set up, including one for F2 to adjust game settings - but I wanted people playing the cab to have a simple, straightforward method for doing it.
Correct, the monitor bezel and glass overlay are original to the cabinet; the bezel held up pretty well, but I needed to repaint the black border on the glass myself, which took 3 or 4 coats.
--- End quote ---
dont defend your cab, you built it for what you wanted. You start getting defensive and the ---uvulas--- come out of the woodwork. As for feedback, I like the original marquee better, its just me , I dont like clip art marquees. I'd get som kinda color scheme going with the buttons (red on the left, blue on the right?) and CPO art wouldnt hurt either. If thats your first cab, kudos, looks great
