Malenko's HS5 Refresh/Restore
« on: January 05, 2016, 01:17:22 pm »
I dont think this is a project because its NOT a MAME cab. I dont really think its a restore because its generic HS-5 cab made for Street Fighter 3 (tags on the back)
We'll just put in restore since I think it leans closer to that , than a project.  Ultimately it will house a Darksoft Multi CPS2 kit just so I dont have to keep swapping all my CPS2 boards around.

I am breaking my own rule of starting a restore before finishing the current one, but the current one is just waiting on art to be printed and applied, so I think its ok.

So here is how I got it:

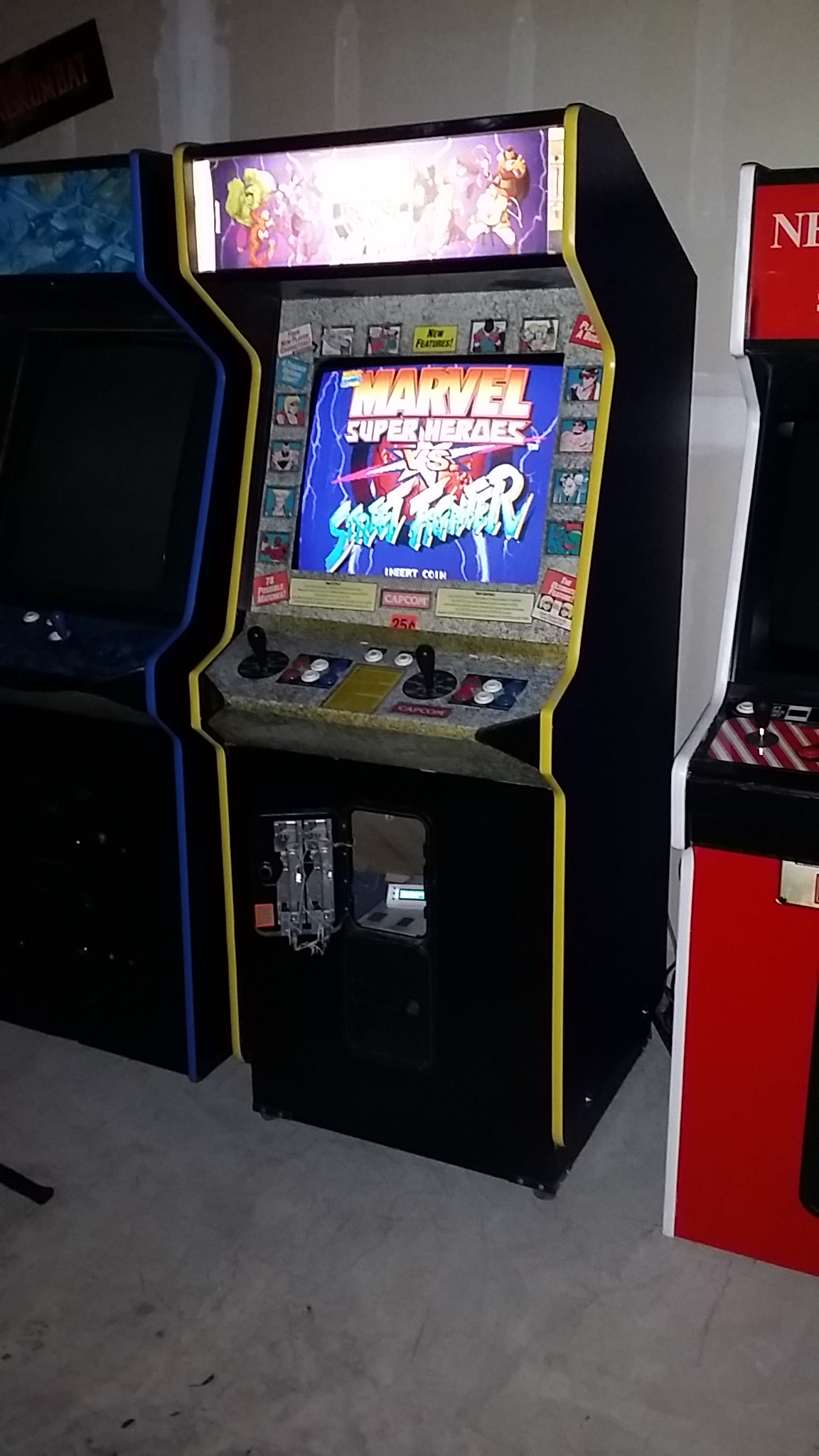

and a nice full frontal picture:
« Last Edit: January 05, 2016, 01:27:26 pm by Malenko »
2014 Standup UCA Runner Up
2015 Restoration UCA Winner
2016 thomas_surles choice award

Latest project:
http://forum.arcadecontrols.com/index.php/topic,150902.0.html
RedheadKingPinball aka GingerBalls

Latest Restore?
http://forum.arcadecontrols.com/index.php/topic,152600.0.html
Killer Instinct Cab

Malenko

  • KNEEL BEFORE ZODlenko!
  • Trade Count: (+58)
  • Full Member
  • ***
  • Offline Offline
  • Posts: 11990
  • 說好話 做好事 存好心
    • forum.arcadecontrols.com/index.php/topic,142404.msg1475162.html
Re: Malenko's HS5 Refresh/Restore
« Reply #1 on: January 05, 2016, 01:26:47 pm »
to note, it did NOT come with a power supply, but the seller did order and ship me one from Twisted Quarter:


First step was to strip the ugly Soul Edge CPO and see what was under there:

All ---That which is odiferous and causeth plants to grow--- aside, I was PSYCHED to find SF2CE art under there.

So I finished stripping the CPO:


Then I just had to populate the panel:


Apparently they spray painted the "corner" piece of the CP, and didnt care about over spray on the CPO:


So I got to clean all that paint off:



Also cleaned off the front, cab was pretty filthy:


Then I pulled the glass off to take the Soul Edge art out, and I was PSYCHED AGAIN to find they had just flipped the SF2CE bezel around and put the SE art on it:

that's after I flipped it back around of course!

Then I stripped the Soul Edge side art off:


Then cleaned:




you can still tell where the art used to be, so Im not sure what Im going to do with the sides. All of my cabs look factory new and are dedicated, so I kinda like having an "aged" generic cab in the mix. VIsuals are TBD.
